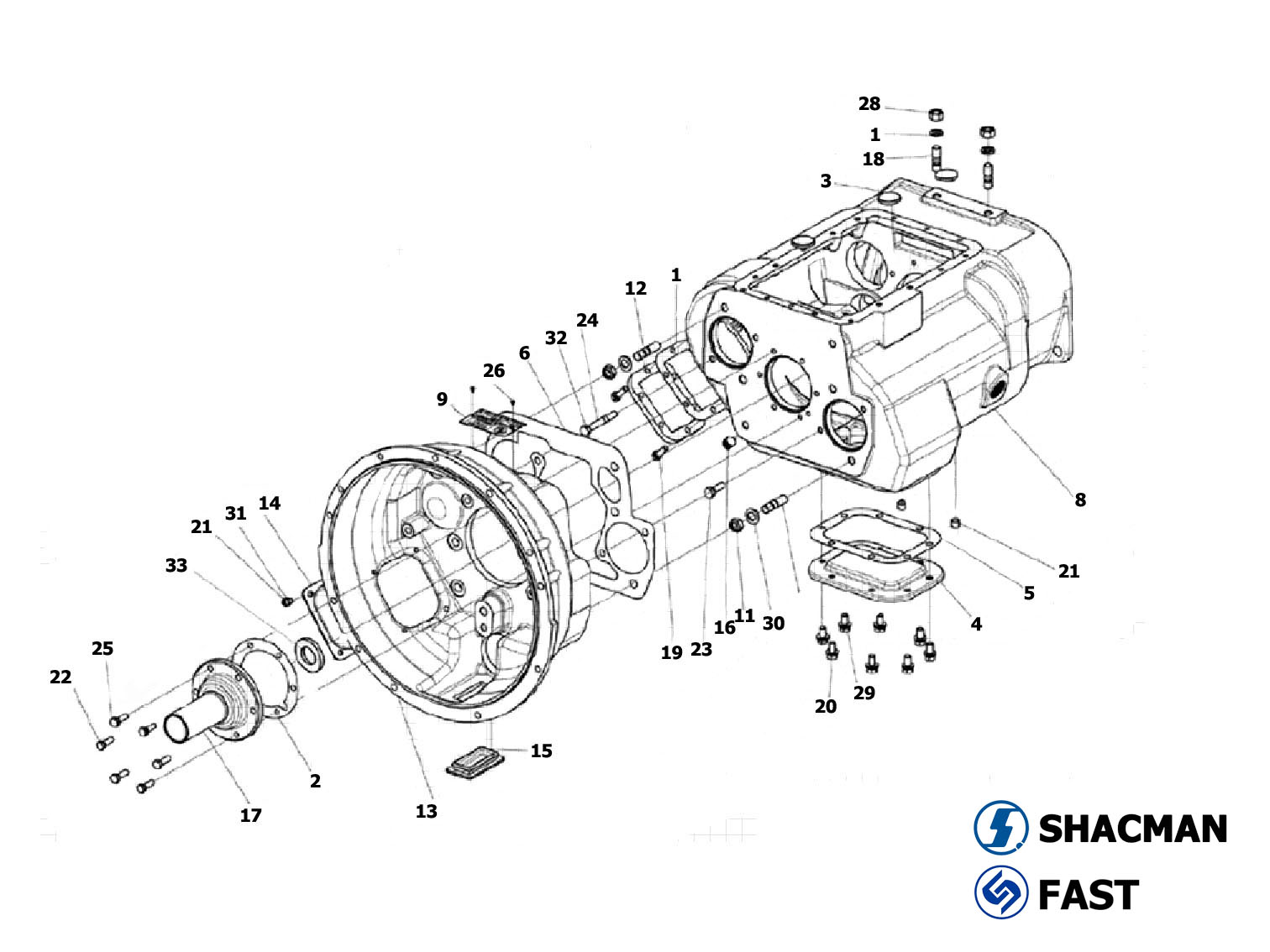

Clutch & transmission housing | ||
FAST Transmission 12JS200T | ||
sequence | name | part number |
1 | Power windows side pad | 1684 |
2 | First shaft bearing cover gasket | 14311 |
3 | Round Magnet | 14373 |
4 | PTO bottom window cover | 16596 |
5 | Gasket | 16929 |
6 | Clutch housing gasket | 20822 |
7 | Spring washer | q40316 |
8 | Transmission housing | 12js160t一1701015 |
9 | nameplate | 12js200t一1702021―3 |
10 | Stud | c01056 |
11 | Hexagon thin nuts nylon ring | gb890―80一m16xl.5 |
12 | PTO side window cover | jsl30t一1701020 |
13 | Clutch housing | jsl80-1601015-6 |
14 | Hand hole cover | jsl80―1601016―1 |
15 | Hand hole cover | jsl80一1601016―2 |
16 | Slotted conical plug | q61304 |
17 | First shaft bearing cap | jsl80a一1701040―3 |
18 | Stud | q1231630 |
19 | Hex head bolt and spring washer assemblies | q1421032 |
21 | Hex head bolts | q150b1025 |
22 | Hex head bolts | q150b1032 |
23 | Hex head bolts | q150b1238 |
24 | Hex head bolts | q150b1290 |
25 | Hexagon head bolt holes | q170b1032 |
26 | Screws | q2713508 |
27 | Slotted set screws with flat | q2821616 |
28 | Hexagon nuts | q341b16 |
29 | Flat Washers | 40112 |
30 | Flat Washers | q40116 |
31 | Spring washer | q40310 |
32 | Spring washer | q40312 |
33 | Oil seal assembly | f500a一1802191 |
