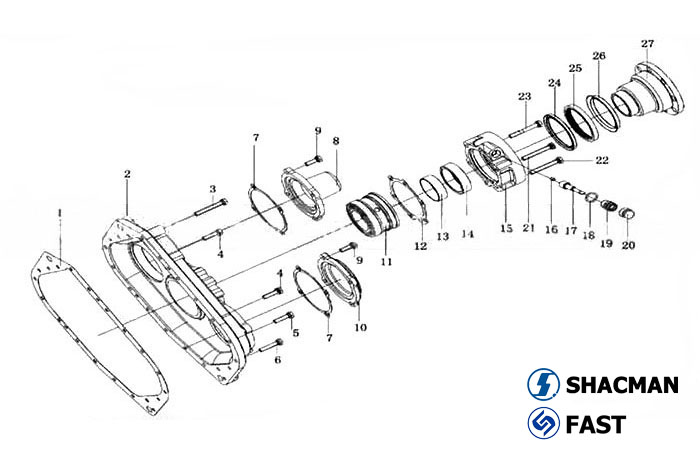

| Rear cover case | ||
| FAST Transmission 12JS200T | ||
| sequence | name | part number |
| 1 | Cover gasket | 14335 |
| 2 | Rear cover case | js220―1707015 |
| 3 | Hex head bolt and spring washer assemblies | q1421075 |
| 4 | Hex head bolt spring washer assemblies | q1461050 |
| 5 | Hex head bolt and spring washer assemblies | 1421040 |
| 6 | Hex head bolt and spring washer assemblies | q1421050 |
| 7 | Vice box middle shaft bearing cover gasket | jsl80―1707053 |
| 8 | Lengthening middle shaft cover | 10jsl60―1707052 |
| 9 | Bolt assembly | a―c09008 |
| 10 | Vice box middle shaft bearing cap | jsl80―1707052 |
| 11 | Tapered Roller Bearings | js220―1707109 |
| 12 | Gasket | jsl80―1707156 |
| 13 | Speedometer drive gear bushing | js220―1707111 |
| 14 | Speedometer drive gear | f91054 |
| 15 | Rear output shaft bearing cap | jsl80―1707155 |
| 16 | Speedometer driven gear bushings | 7992 |
| 17 | Odometer driven gear | f91055 |
| 18 | Gasket | f96005 |
| 19 | Odometer joint assembly | f93060 |
| 20 | Odometer protective cover | x11412 |
| 21 | Hexagon head bolt and spring washer assemblies | c09033 |
| 22 | Hex head bolt and spring washer assemblies | q1421075 |
| 23 | Bolt assembly | a―c09009 |
| 24 | Oil seals | c01032 |
| 25 | Seal | 21036 |
| 26 | Dust cover | f96119 |
| 27 | Output flange | js220―1707159 |
