ENGINE MOUNTING, DONGFENG PARTS CATALOGS
HOME CATALOG > DONGFENG CUMMINS TRUCK PARTS CATALOGUES > DONGFENG CUMMINS 4BT EQB125-20 ENGINE PARTS CATALOGUES >
|

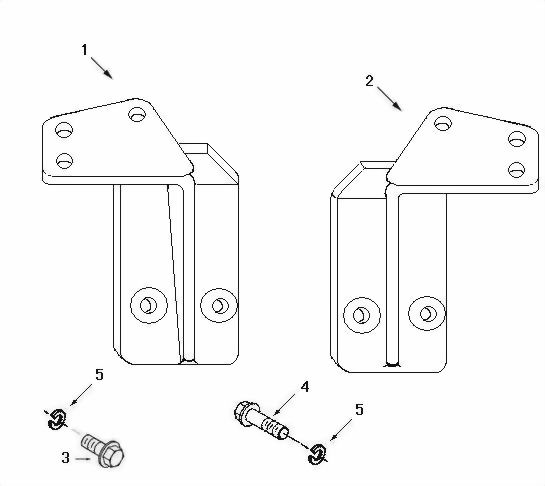

Seq. |
Part Number |
Name |
Qty |
| |
EM 9272ZZ |
SUPPORT,FRONT ENGINE |
1 |
| 发动机前悬置组 |
| 1 |
10Q01-01013-B |
SUPPORT,FRONT ENGINE |
1 |
| 发动机前悬置左支架 |
| 2 |
10Q01-01014-B |
SUPPORT,FRONT ENGINE |
1 |
| 发动机前悬置右支架 |
| 3 |
Q150B1230 |
SCREW,HEXAGON HEAD CAP |
3 |
| 六角头螺栓 |
| 4 |
Q150B1242 |
SCREW,HEXAGON HEAD CAP |
3 |
| 六角头螺栓 |
| 5 |
Q40312 |
WASHER,SPRING |
6 |
| 弹簧垫圈 |
|

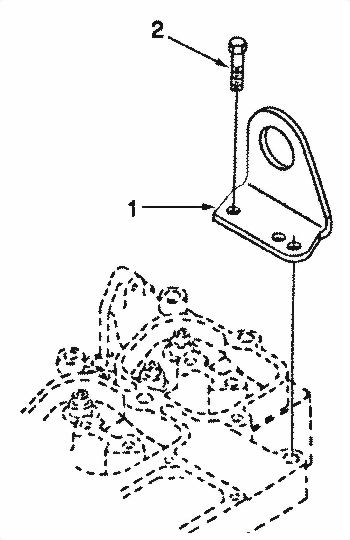

Seq. |
Part Number |
Name |
Qty |
| |
LA 9007-02ZZ |
BRACKET,LIFTING |
1 |
| 发动机吊耳组 |
| 1 |
A3960369 |
BRACKET,LIFTING |
1 |
| 后吊耳 |
| 2 |
C3910495 |
SCREW,HEX FLANGE HEAD CA |
2 |
| 六角法兰面螺栓 |
