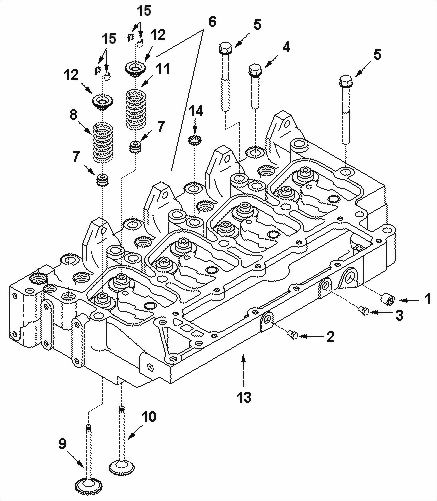

| Seq. | Part Number | Name | Qty |
|---|---|---|---|
| PP97016ZZ | HEAD,CYLINDER | 1 | |
| 气缸盖组 | |||
| 1 | C3008468 | PLUG,PIPE | 2 |
| 内六角锥形螺塞 | |||
| 2 | C3906619 | PLUG, PIPE | 1 |
| 六角头锥形螺塞 | |||
| 3 | C3906619 | PLUG, PIPE | 1 |
| 六角头锥形螺塞 | |||
| 4 | C3920779 | Screw,Hex flange head ca | 4 |
| 气缸盖螺栓 | |||
| 5 | C3920780 | Screw,hex flange head ca | 10 |
| 气缸盖螺栓 | |||
| 6 | C3967432ZZ | HEAD,CYLINDER | 1 |
| 缸盖 | |||
| 7 | 3957912 | SEAL,VALVE STEM | 8 |
| 气阀杆油封 | |||
| 8 | A3900276 | SPRING,VALVE | 4 |
| 气阀弹簧 | |||
| 9 | A3901117 | VALVE,INTAKE | 4 |
| 进气阀 | |||
| 10 | A3901607 | VALVE,EXHAUST | 4 |
| 排气阀 | |||
| 11 | A3916691 | SPRING,VALVE | 4 |
| 气阀弹簧(排) | |||
| 12 | C3957913 | RETAINER,VALVE SPRING | 8 |
| 气阀弹簧座 | |||
| 13 | C3966448 | HEAD,CYLINDER | 1 |
| 气缸盖带碗形塞总成 | |||
| 14 | A3902606 | PLUG,EXPANSION | 3 |
| 碗形塞 | |||
| 15 | D3900250 | COLLET,VALVE | 16 |
| 气阀锁块 | |||
| PP97342ZZ | MOUNTING,CYLINDER HEAD | 1 | |
| 气缸盖安装件组 | |||
| 1 | A3921393 | GASKET,CYLINDER HEAD | 1 |
| 气缸垫 |
