AIR COMPRESSOR, DONGFENG CUMMINS PARTS CATALOGS

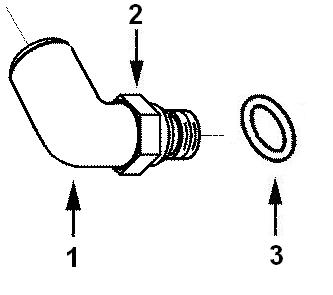

Seq.	Part Number	Name	Qty
	CP9002-1ZZ	CONNECTION	1
	CP9002-1ZZ	空压机接头组	1
1	11N-09074	ELBOW,MALE ADAPTER	1
1	11N-09074	空压机进气接头	1
2	Q351B22	NUT,REGULAR HEXAGON	1
2	Q351B22	六角薄螺母	1
3	Q40122	WASHER,PLAIN	1
3	Q40122	平垫圈	1

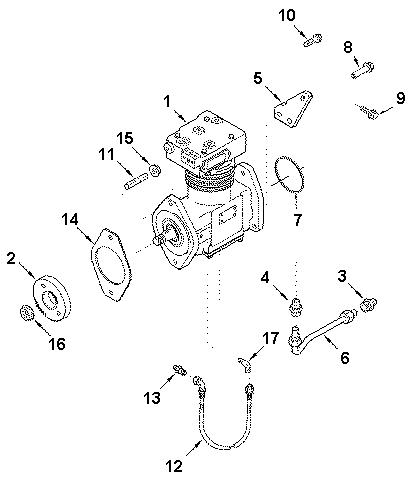

Seq.	Part Number	Name	Qty
	CP 9591ZZ	COMPRESSOR,AIR	1
	CP 9591ZZ	空压机组	1
1	3509Q17-010	COMPRESSOR,AIR	1
1	3509Q17-010	空压机总成	1
2	A3960345	GEAR,ACCESSORY DRIVE	1
2	A3960345	空压机齿轮	1
3	A3960376	CONNECTOR,MALE	1
3	A3960376	直通接头体	1
4	A3960376	CONNECTOR,MALE	1
4	A3960376	直通接头体	1
5	A3960385	BRACE,AIR COMPRESSOR	1
5	A3960385	空压机支架	1
6	A3960393	TUBE,LUB OIL DRAIN	1
6	A3960393	空压机回油管	1
7	A3960399	SEAL,O RING	1
7	A3960399	O型密封圈	1
8	C3089232	SCREW,HEX FLANGE HEAD	1
8	C3089232	六角法兰螺栓	1
9	C3902114	SCREW,HEX FLANGE HEAD CA	2
9	C3902114	六角法兰面螺栓	2
10	C3902460	SCREW，HEX FLANGE HEAD	2
10	C3902460	六角法兰面螺栓	2
11	C3905371	STUD	2
11	C3905371	双头螺柱	2
12	C3976797	HOSE,FLEXIBLE	1
12	C3976797	组合软管	1
13	C3977319	CONNECTOR,MALE	1
13	C3977319	扩口式锥螺纹直通接头体	1
14	C3978432	GASKET,AIR COMPRESSOR	1
14	C3978432	空压机密封垫	1
15	Q32012	NUT,HEXAGON FLANGE	2
15	Q32012	六角法兰面螺母	2
16	Q32116	NUT,HEXAGON FLANGE	1
16	Q32116	六角法兰面螺母	1
17	RQ65406-J8	ELBOW,MALE ADAPTER	1
17	RQ65406-J8	扩口式锥螺纹直角接头体	1

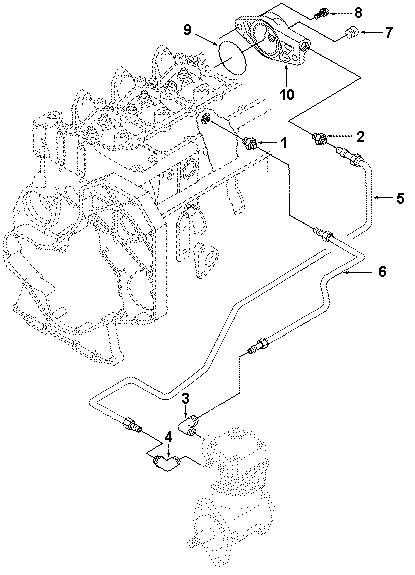

Seq.	Part Number	Name	Qty
	CC 9327ZZ	PLUMBING,CPR COOLANT	1
	CC 9327ZZ	空压机冷却水管组	1
1	A3960376	CONNECTOR,MALE	1
1	A3960376	直通接头体	1
2	A3960376	CONNECTOR,MALE	1
2	A3960376	直通接头体	1
3	A3960377	ELBOW,MALE ADAPTER	1
3	A3960377	直角接头体	1
4	A3960377	ELBOW,MALE ADAPTER	1
4	A3960377	直角接头体	1
5	A3960550	TUBE,CPR WATER INLET	1
5	A3960550	空压机进水管	1
6	A3960572	TUBE,CPR WATER OUTLET	1
6	A3960572	空压机出水管	1
7	C3008468	PLUG,PIPE	1
7	C3008468	内六角锥形螺塞	1
8	C3910495	SCREW,HEX FLANGE HEAD CA	2
8	C3910495	六角法兰面螺栓	2
9	C3910530	Seal,Rectangular ring	1
9	C3910530	矩形密封圈	1
10	C3925226	Connection,Water transfe	1
10	C3925226	出水联接管座	1
