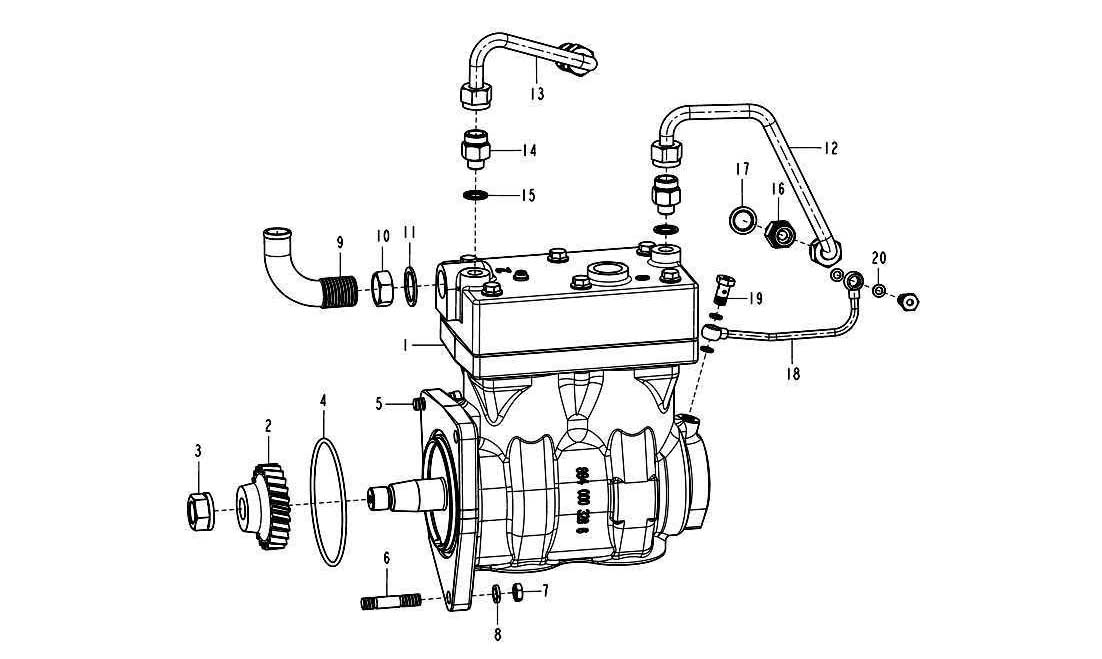

| AIR COMPRESSOR | |||
| D12 ENGINE, EURO-III | |||
| Serial | Number | Name | Quantity |
| 1 | VG1246130008 | air compressor | 1 |
| 2 | VG1246130009 | air compressor gear | 1 |
| 3 | VG1246130010 | hex nut | 1 |
| 4 | VG1246130012 | O ring | 1 |
| 5 | Q150B1030 | hex head bolt | 1 |
| 6 | Q1201040F3 | double head bolt | 2 |
| 7 | Q340B10 | hex nut | 2 |
| 8 | Q40310 | spring gasket | 3 |
| 9 | VG1246130016 | connet joint for intake pipe | 1 |
| 10 | 190003559778 | hex nut | 1 |
| 11 | VG2600130037 | gasket | 1 |
| 12 | VG1246130003 | water inlet pipe | 1 |
| 13 | VG1246130020 | water outlet pipe | 1 |
| 14 | VG1246130021 | pipe joint | 2 |
| 15 | VG9003080005 | compound sealing gasket | 2 |
| 16 | VG1246130022 | pipe joint | 2 |
| 17 | VG9003080006 | compound sealing gasket | 2 |
| 18 | VG1246130006 | oil inlet pipe | 1 |
| 19 | 190003962607 | hollow bolt | 2 |
| 20 | VG9003080003 | compound sealing gasket | 4 |
