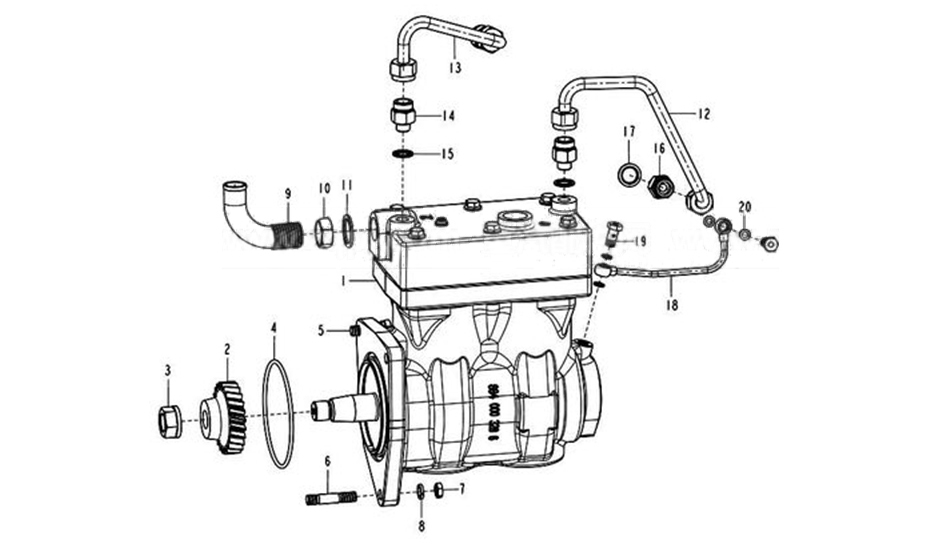

AIR COMPRESSOR, D12 EURO-II ENGINE | ||
Serial | Name | Number |
1 | air compressor assy | vg1246130008 |
2 | air compressor gear | vg1246130009 |
3 | hexagon nut | vg1246130010 |
4 | O-sealing ring | vg1246130012 |
5 | hexagonal head bolt | q150b1030 |
6 | double head bolt | q1201040f3 |
7 | hexagon nut | q340b10 |
8 | spring gasket | q40310 |
9 | air inlet pipe connector | vg1246130016 |
10 | hexagon nut | 190003559778 |
11 | gasket | vg2600130037 |
12 | water-inlet pipe | vg1246130003a |
13 | water-outlet pipe | vg1246130020a |
14 | pipe connecting joint | vg1246130021 |
15 | compound sealing gasket | vg9003080005 |
16 | pipe connecting joint | vg1246130022 |
17 | compound sealing gasket | vg9003080006 |
18 | oil-inlet pipe | vg1246130006 |
19 | hollow bolt | 190003962607 |
20 | compound sealing gasket | vg9003080003 |
