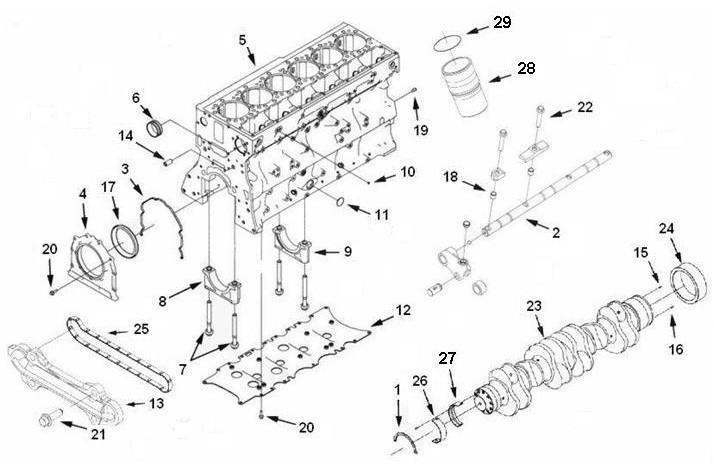

BB 2809 CYLINDER, DONGFENG TRUCK PARTS

		BB 2809 CYLINDER
序号 NO	组件号 PART NO.	组件名称 PART NAME	数量 QTY
1	2869805	曲轴止推瓦 BEARING,CRANKSHAFT THRUS	4
2	C2869983	凸轮从动杆 LEVER,CAM FOLLOWER	2
3	C2870121	前端齿轮室盖密封垫 SEAL,FRONT COVER	1
4	C2874044	油封座 CARRIER,SEAL	1
5	C2874066	缸体 BLOCK,CYLINDER	1
6	C2869839	衬套 BUSHING	7
7	C2873989	抗碎螺栓 SCREW,FRACTURE RESISTANT	14
8	C2884751	主轴承盖 CAP,MAIN BEARING	6
9	C2884752	主轴承盖 CAP,MAIN BEARING	1
10	C3007632	碗形塞 PLUG,EXPANSION	2
11	C3015865	碗形塞 PLUG,EXPANSION	4
12	C2883240	缸体加强板 STIFFENER,CYLINDER BLOCK	1
13	C2884766	前齿轮室盖 COVER,FRONT	1
14	C3100706	定位环 DOWEL,RING	1
15	C3681054	定位销 DOWEL,PIN	1
16	C3681054	定位销 DOWEL,PIN	1
17	C3685173	油封 SEAL,OIL	1
18	C3900720	定位环 DOWEL,RING	4
19	C3901846	定位销 DOWEL,PIN	2
20	C3903112	六角法兰面螺栓 SCREW,HEX FLANGE HEAD CA	8
21	C3903112	六角法兰面螺栓 SCREW,HEX FLANGE HEAD CA	17
22	C3903112	六角法兰面螺栓 SCREW,HEX FLANGE HEAD CA	4
23	C4316828	曲轴 CRANKSHAFT,ENGINE	1
24	C4327640	曲轴齿轮 GEAR,CRANKSHAFT	1
25	C4960053	前端齿轮室盖密封垫 SEAL,FRONT COVER	1
26	C4999939	曲轴瓦 BEARING,MAIN	7
27	C4999940	曲轴瓦 BEARING,MAIN	7
28	C4999962	缸套 LINER,CYLINDER	6
29	D2873961	O形密封圈 SEAL,O RING	6
30	C3903112	六角法兰面螺栓 SCREW,HEX FLANGE HEAD CA	4
31	C3903112	六角法兰面螺栓 SCREW,HEX FLANGE HEAD CA	17
32	C3681054	定位销 DOWEL,PIN	1
