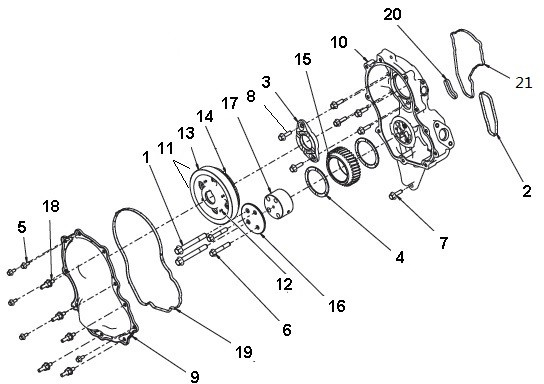

| BB 2880 GEAT BOX | |||
|---|---|---|---|
| 序号 NO |
组件号 PART NO. |
组件名称 PART NAME |
数量 QTY |
| 1 | 3680437 | 六角法兰面螺栓 SCREW,HEX FLANGE HEAD CA | 2 |
| 2 | C2864829 | 齿轮室密封垫 SEAL,GEAR HOUSING | 1 |
| 3 | C2874083 | 惰齿轮止推片 BEARING,THRUST | 1 |
| 4 | C2874329 | 针形轴承 BEARING,THRUST | 2 |
| 5 | C3900629 | 六角法兰面螺栓 SCREW,HEX FLANGE HEAD CA | 5 |
| 6 | C3900635 | 六角法兰面螺栓 SCREW,HEX FLANGE HEAD CA | 2 |
| 7 | C3925344 | 六角法兰面螺栓 SCREW,HEX FLANGE HEAD CA | 5 |
| 8 | C3925344 | 六角法兰面螺栓 SCREW,HEX FLANGE HEAD CA | 2 |
| 9 | C4327429 | 齿轮室盖 COVER,GEAR | 1 |
| 10 | C4327431 | 齿轮室 HOUSING,GEAR | 1 |
| 11 | C4327434 | 凸轮轴齿轮 GEAR,CAMSHAFT | 1 |
| 12 | C3093921 | 六角法兰面螺栓 SCREW,HEX FLANGE HEAD CA | 4 |
| 13 | C4327561 | 凸轮轴齿轮 GEAR,CAMSHAFT | 1 |
| 14 | C4975198 | 位置传感器盖板 PLATE,POSITION SENSOR | 1 |
| 15 | C4327556 | 惰齿轮 GEAR,IDLER | 1 |
| 16 | C4327563 | 齿轮固定器 RETAINER,GEAR | 1 |
| 17 | C4327564 | 惰轮轴 SHAFT,IDLER | 1 |
| 18 | C4929065 | 六角法兰面螺栓 SCREW,STUDDED FLANGE CAP | 5 |
| 19 | C4974921 | 前端齿轮室盖密封垫 SEAL,FRONT COVER | 1 |
| 20 | C4975284 | 齿轮室密封垫 SEAL,GEAR HOUSING | 1 |
| 21 | C4975285 | 齿轮室密封垫 SEAL,GEAR HOUSING | 1 |
