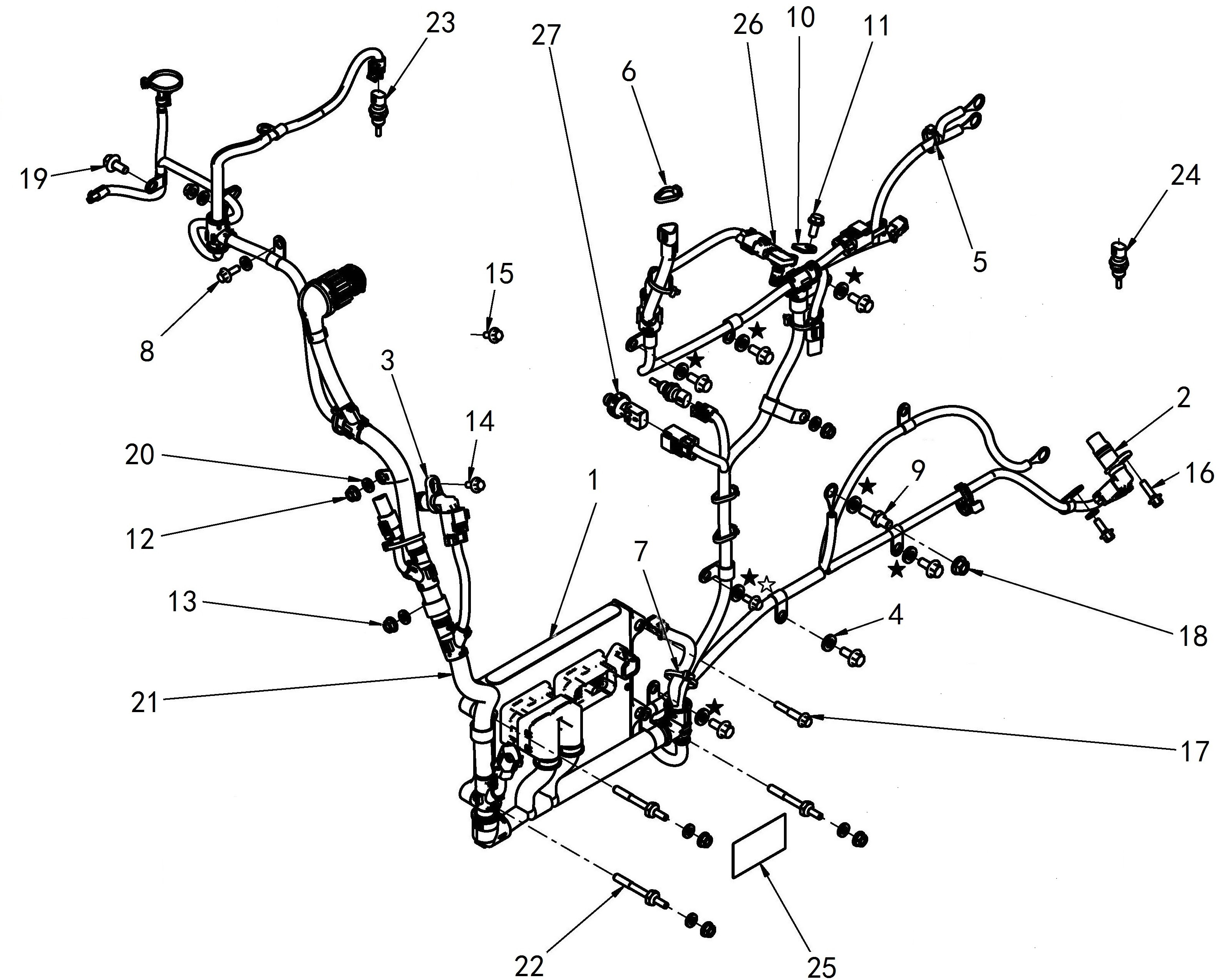

| PH 2885 ENGINE CONTROL MODULE | |||
|---|---|---|---|
| 序号 NO |
组件号 PART NO. |
组件名称 PART NAME |
数量 QTY |
| 1 | C4995445 | 电控模块 MODULE,ELECTRONIC CONTRO | 1 |
| 2 | C2872279 | 位置传感器 SENSOR,POSITION | 1 |
| 3 | C2872279 | 位置传感器 SENSOR,POSITION | 1 |
| 4 | C3036460 | 弹簧垫圈 WASHER,SPRING | 8 |
| 5 | C3062329 | 环箍 CLAMP,WIRE TIE | 6 |
| 6 | C3062329 | 环箍 CLAMP,WIRE TIE | 1 |
| 7 | C3062329 | 环箍 CLAMP,WIRE TIE | 1 |
| 8 | C3093775 | 六角法兰面螺栓 SCREW,HEX FLANGE HEAD CA | 2 |
| 9 | C3681386 | 双头螺栓 SCREW,STUDDED HEXAGON CA | 1 |
| 10 | C3684241 | 支架 BRACE,RETAINING | 1 |
| 11 | C3821783 | 带密封垫螺栓 SCREW,CAPTIVE WASHER CAP | 1 |
| 12 | C3900589 | 六角法兰面螺母 NUT,HEXAGON FLANGE | 4 |
| 13 | C3900589 | 六角法兰面螺母 NUT,HEXAGON FLANGE | 3 |
| 14 | C3900629 | 六角法兰面螺栓 SCREW,HEX FLANGE HEAD CA | 1 |
| 15 | C3900629 | 六角法兰面螺栓 SCREW,HEX FLANGE HEAD CA | 1 |
| 16 | C3900631 | 六角法兰面螺栓 SCREW,HEX FLANGE HEAD CA | 1 |
| 17 | C3901445 | 六角法兰面螺栓 SCREW,HEX FLANGE HEAD CA | 1 |
| 18 | C3902662 | 六角法兰面螺母 NUT,HEXAGON FLANGE | 1 |
| 19 | C3903990 | 六角法兰面螺栓 SCREW,HEX FLANGE HEAD CA | 7 |
| 20 | C3910266 | 弹簧垫圈 WASHER,SPRING | 9 |
| 21 | C4388985 | 电控模块线束 HARNESS,ETR CNT MDL WRG | 1 |
| 22 | C4933208 | 六角头螺栓 SCREW,STUDDED HEXAGON CA | 3 |
| 23 | C4954905 | 温度传感器 SENSOR,TEMPERATURE | 1 |
| 24 | C4954905 | 温度传感器 SENSOR,TEMPERATURE | 1 |
| 25 | C5267513 | 参数牌 DATAPLATE | 1 |
| 26 | D2897334 | 温度传感器 SENSOR,PRS TEMPERATURE | 1 |
| 27 | D4921517 | 压力传感器 SENSOR,PRESSURE | 1 |
