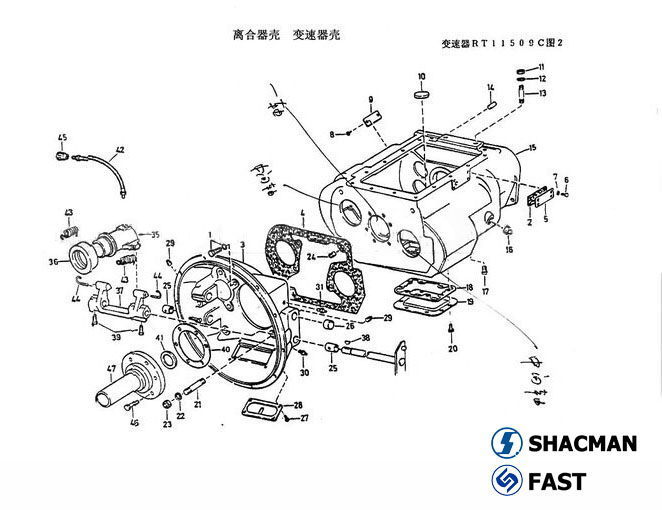

Clutch & transmission housing | ||
FAST Transmission RT11509C | ||
sequence | name | part number |
2 | Liner | 19481 |
3 | Clutch housing | jsl00-1015-1 |
3 | Clutch housing assembly | tsl80a-1601015―5 |
3 | Clutch housing | 154lo |
3 | Clutch housing | jsl80a一1601015 |
3 | Clutch housing assembly | a-3674 |
4 | Liner | 14310 |
5 | Cover | 18420 |
10 | Round Magnet | 14373 |
11 | Screw nut | m16×1.5 |
12 | Washer | q40316 |
13 | Stud | q1231630 |
14 | Locating Pins | 14334 |
15 | Transmission housing | jsl00―1701015 |
15 | Transmission housing | 18686 |
16 | Plug | q61412 |
17 | Oil drain plug | q61304 |
18 | Gasket | 16920 |
19 | PTO bottom cover | 16595 |
19 | PTO bottom cover | jsl30t-1701020 |
20 | Screws | m12×22 |
21 | Stud | q1231642 |
22 | Washer | q40316 |
23 | Screw nut | m16×1.5 |
24 | Screw plug | x―14558 |
25 | Bushings | 8677 |
26 | Bowl plug piece | 16374 |
27 | Screws | m8×12 |
28 | Manhole Cover | 1565 |
29 | Square head taper plug | q16401 |
30 | Butter mouth | q70170 |
31 | Grease nipple | q7oool |
35 | Separation bearing | 11203 |
36 | Release Bearing | 996914 |
37 | Clutch release fork | 12817 |
38 | Woodruff key | x-6-1l |
39 | Retaining screws | x-7-603 |
40 | Bearing cover gasket | 14311 |
41 | First shaft bearing cap seals | f500a一1802191 |
41 | First shaft bearing cap seals | f91410 |
42 | Hose | 51016 |
43 | Spring | 4425 |
44 | Separation fork return spring | 9293 |
45 | Lubricants Cup | 1/8″ |
46 | Bolt | m10×32 |
47 | First shaft bearing cap | t116e―1701040 |
47 | First shaft bearing cap | jsl80a一1701040 |
47 | First shaft bearing cap | f91409 |
