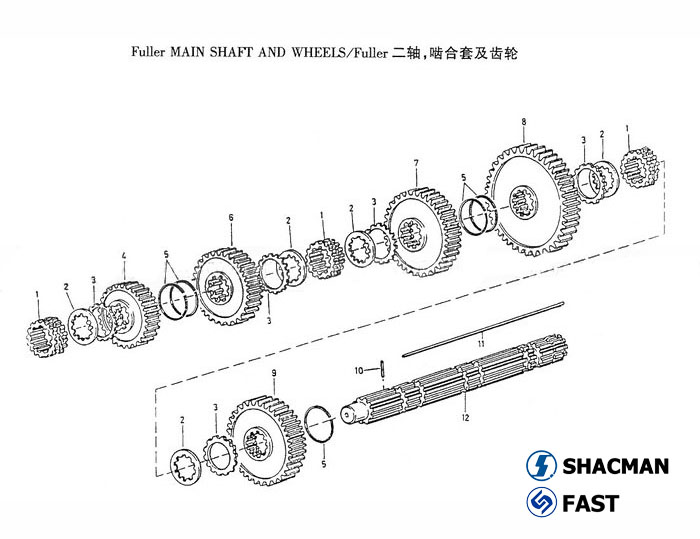

Second shaft gearing bushing & gear | ||
FAST Transmission RT11509C | ||
sequence | name | part number |
1 | Second shaft sleeve | 16118 |
1 | Second shaft sleeve | jsl30t-1701108 |
2 | Adjusting pad | 1870l |
3 | splined washer | jsl00-1701113 |
3 | splined washer | 14749 |
4 | Second shaft third gear | 19242 |
4 | Second shaft overdrive gear | tll6e-1701132 |
4 | Second shaft fourth gear | jsl30ta-1701131 |
4 | Second shaft fourth gear | jsl00a-1701131 |
4 | Second shaft third gear | jsl00t-1701131 |
4 | Second shaft third gear | jsl00―1701131 |
4 | Second shaft fourth gear | _1s10gra-1701131 |
4 | Second shaft third gear | jsl80t-1701131 |
4 | Second shaft overdrive gear | 19638 |
4 | Second shaft third gear | 16748 |
4 | Second shaft override gear | jsl50-1701113 |
5 | Snap ring | 14750 |
6 | First shaft second gear | jsl50-1701112 |
6 | Second shaft second gear | jsl80t-1701130 |
6 | Second shaft two gear | 19614 |
6 | Second shaft two gear | 19622 |
6 | Second shaft two gear | jsl30t-1701130 |
6 | Second shaft two gear | 16750 |
6 | Second shaft second gear | jsl00t-1701130 |
7 | Second shaft first gear | jsl50-1701111 |
7 | Second shaft first gear | jsl30t-1701112 |
7 | Second shaft first gear | jsl00t-1701112 |
7 | Second shaft first gear | 19246 |
7 | Second shaft first gear | jsl00-1701112 |
7 | Second shaft first gear | 19628 |
7 | Second shaft first gear | jsl80t-1701112 |
7 | Second shaft first gear | 16752 |
8 | Second shaft low gear | 16754 |
9 | Second shaft reverse gear | jsl00-1701111 |
9 | Second shaft reverse gear | jsl80t-1701111 |
9 | Second shaft reverse gear | 16756 |
10 | Elastic cylindrical pin | 62504 |
11 | Second shaft hex key | 17109 |
12 | Second shaft | jsl30t-1701105 |
12 | Second shaft | jsl80t-1701105 |
12 | Second shaft | 18729 |
12 | Second shaft | jsl80-1701105 |
