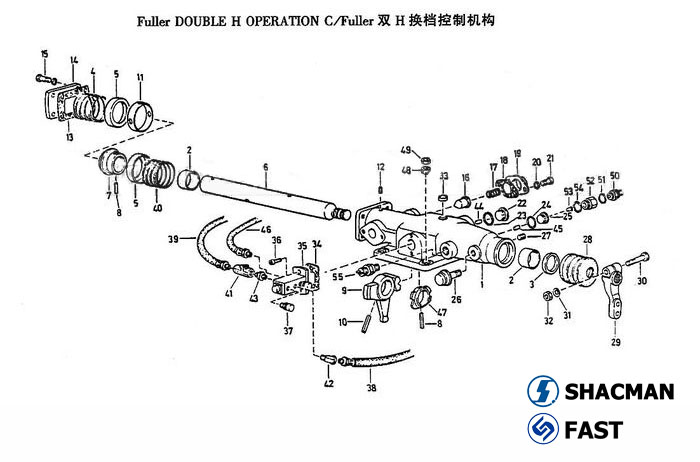

Double H valve shifting mechanism | ||
FAST Transmission RT11509C | ||
sequence | name | part number |
1 | Housing | f96194 |
1 | Housing | jsl00-1702051 |
2 | Bush | f91345 |
3 | Seal | f91444 |
4 | Spring | f99983 |
5 | Spring seat | f99673 |
6 | Lateral shift lever | f99679 |
6 | Lateral shift lever | jsl00-1702017 |
7 | Positioning ring | f99675 |
8 | Elastic cylindrical pin | q5000635 |
9 | Dial head | jsl00a-1702072 |
9 | Dial head | f99585 |
10 | Cylindrical pin | c03030 |
10 | Pin | jal00a-1702073 |
11 | Spring spacer | f99674 |
12 | Screw | c03004 |
13 | Gasket | f99672 |
14 | Plates | f99666 |
15 | Screws | m8x12 |
16 | Positioning of the plunger | f99670 |
17 | Compression spring | f96037 |
18 | Liner | f96140 |
19 | Spring gland | f96141 |
20 | Bolt | m8×12 |
21 | Washer | q40108 |
22 | Neutral switch | 99012710041 |
22 | Plugs | q61518 |
23 | Liner | 17179 |
24 | Liner | 15900 |
25 | Reverse switch plug | 15917 |
26 | Vent plug | 15276 |
27 | Square groove taper plug | q61302 |
28 | Dust cover | f99669 |
29 | Shifting arm | f96035 |
30 | Bolt | m10×lx50 |
31 | Spring washer | q40310 |
32 | Screw nut | m10×l |
33 | Bowl plug piece | q72224 |
34 | Liner | f91353 |
35 | Double H double valve | f99660 |
Double H valve control device | a-c0300l | |
Double H valve control device | a-c0300l-1 | |
36 | Socket head cap screws | m6×18 |
37 | Vent plug | 7935 |
38 | Trachea | 55518 |
39 | Trachea | 55522 |
40 | Spring | f96036 |
41 | Joint | 12881 |
42 | Pipe fittings | 12880 |
43 | Connector | 12769 |
44 | Neutral switch Pin | f99702 |
45 | Switch start pin | 15899 |
46 | Trachea (pick-grade) | 55523 |
47 | Reverse switch control block | jsl00-1702052 |
47 | Reverse switch control block | f99681 |
48 | Nuts (thick) | m10×l |
49 | Nut (flat) | m10×1 |
50 | Reverse gear switch | 79100710068 |
51 | Seal | c03015 |
52 | Reverse gear switch plug | 15917 |
54 | Seal | c03015 |
47a | Retaining pin | jsl00-1703012 |
