Shifting cylinder, SHACMAN Parts RT11509C Gearbox Catalogs

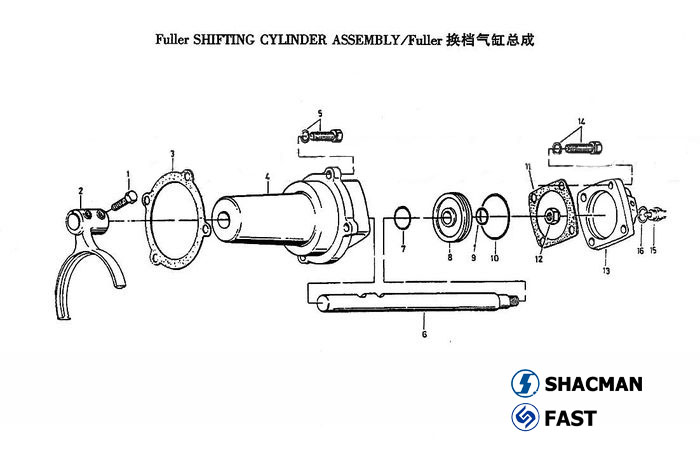

Shifting cylinder
FAST Transmission RT11509C
sequence name part number
  Shifting cylinder  a-c09016
1 Screws m12×1.25×50
2 Vice box fork 16775
3 Liner 1684
4 Range gear cylinder 16778
5 Screws m10×32
6 Fork shaft 16993
7 O-ring 14765
8 Piston 14341
9 O-ring 14345
10 O-ring 14344
11 Cylinder head gasket 14349
12 Screw nut m16×1.5
13 Cylinder head f99857
15 High-low gear switch 79100710069
16 Washer x11511




\
