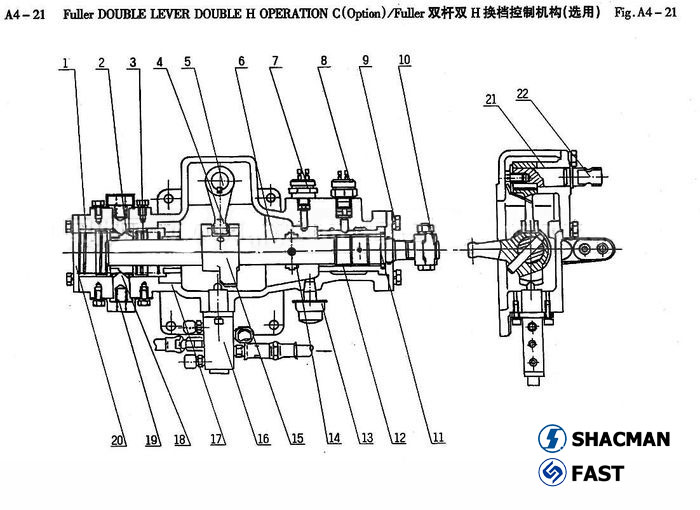

| Double rod double H valve control device | ||
| FAST Transmission RT11509C | ||
| sequence | name | part number |
| 0 | Double rod double H valve | a-c03001-3 |
| 1 | Spring | f99983 |
| 2 | Positioning ring | f99675 |
| 4 | Gear selector head | c03035-l |
| 5 | Flat key | c03038-1-l |
| 6 | Lateral shift lever | 99679-3 |
| 7 | Reverse switch | 79100710068 |
| 8 | AC switch | 99012710041 |
| 9 | Cover | c03033-1 |
| 10 | Shift arm | fh5035-5 |
| 11 | Shift adapter | c03032-l |
| 12 | Splined sleeve | c0303l-l |
| 13 | Vent plug | 15276 |
| 14 | Reverse switch control block | f99681 |
| 15 | Dial head | f99585-l |
| 16 | Double H valve | f99660 |
| 17 | Double H control housing | jsl00-1702051-1 |
| 17 | Double H control housing | f96194-3 |
| 18 | Positioning of the plunger | f99670 |
| 19 | Spring | f96037 |
| 20 | Cover | f99666 |
| 21 | Window Cover | c03036-1 |
| 22 | Connector | c03035-l |
