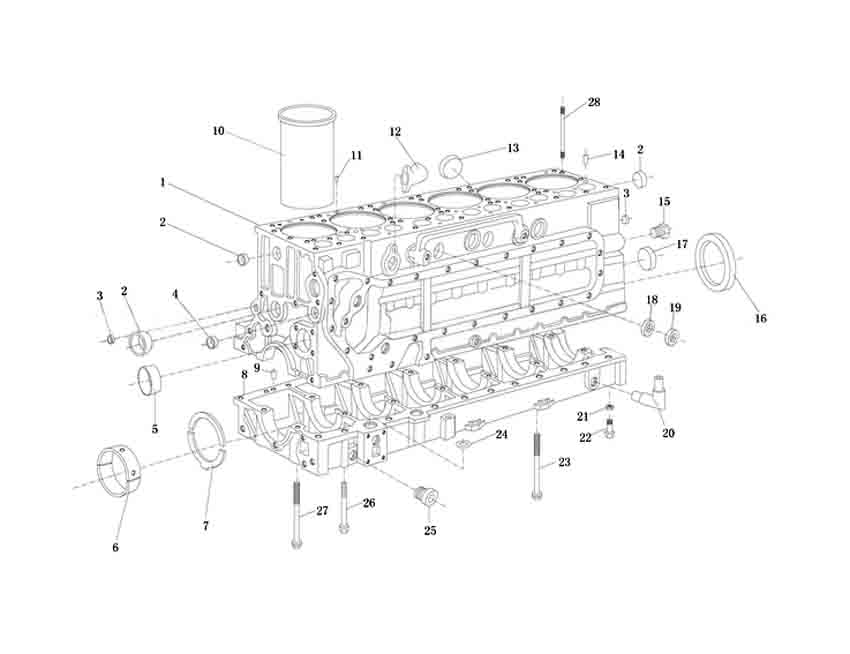

| CYLINDER BODY 1# | ||
| WP10 EURO-III ENGINE PARTS CATALOGS | ||
| Serial | Name | Part Number |
| 1 | Crankcaase | 612600011729 |
| 2 | Corehole plug | 90003982121 |
| 3 | Corehole plug | 90003989480 |
| 4 | Corehole plug | 90003989204 |
| 5 | Bush | 61560010029 |
| 5 | Bush | 612300010990 |
| 6 | Shell pin | 81500010046 |
| 7 | Stop washer | 81500010125 |
| 8 | Crankcaase | 61500010366 |
| 9 | Dowel pin | 90003901604A |
| 10 | Liner | 61500010344 |
| 11 | Dowl pin | 90003909626 |
| 12 | Elbowconnector | 614010279 |
| 13 | Corehole plug | 90003989210 |
| 15 | Dowel pin | 90003901604 |
| 17 | Plug | 61460070011 |
| 18 | Gasket | 61500010100 |
| 19 | Corehole plug | 90003989288 |
| 20 | Corehole plug | 90003989289 |
| 21 | Corehole plug | 90003982915 |
| 22 | Pipe | 612600070097 |
| 23 | Washer | 188250083 |
| 24 | Screw | 90003862428 |
| 25 | Bolt | 614010217 |
| 26 | Sealring | 81400010032 |
| 27 | plug | 90003962050 |
| 27 | Bolt | 90003802493 |
| 30 | Bolt | 614010114 |
| 30 | Bolt | 61500010185 |
