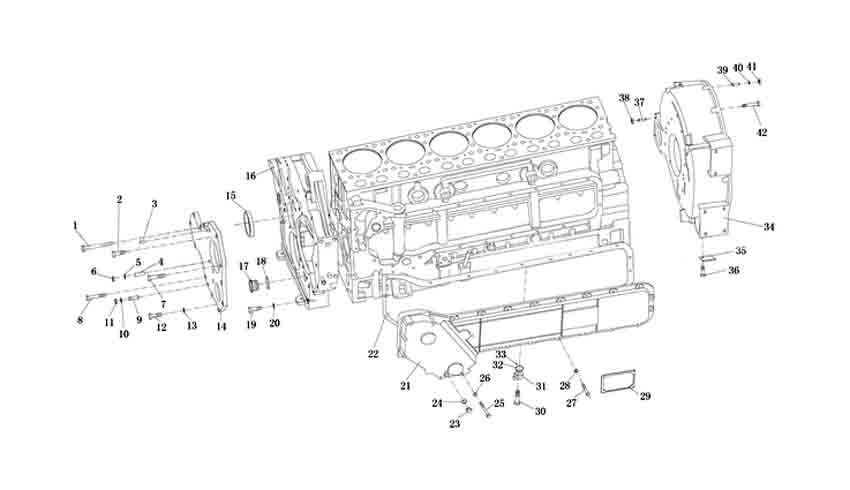

| CYLINDER BODY 2# | ||
| WP10 EURO-III ENGINE PARTS CATALOGS | ||
| Serial | Name | Part Number |
| 1 | Hexagon bolt | 90003800571 |
| 2 | Hexagon bolt | 90003802523 |
| 3 | Pin | 90003901604 |
| 4 | Pin | 90003813429 |
| 5 | Spring washer | 90003932023 |
| 6 | Hexagon nut(1) | 90003871252 |
| 7 | Hexagon bolt | 90003802511 |
| 8 | Hexagon bolt | 90003802424 |
| 9 | Stud | 90003813527 |
| 10 | Spring washer | 90003932025 |
| 11 | Hexagon nut(1) | 90003871305 |
| 12 | Hexagon bolt | 90003802523 |
| 13 | Spring washer | 90003932025 |
| 14 | End cover | 612600011777 |
| 15 | Seal ring | 90003120602 |
| 16 | Timing gear case | 612600011776 |
| 17 | Hexagon screw plug | 90003962051 |
| 18 | Seal ring | 90003098086 |
| 19 | Hexagon bolt | 90003832524 |
| 20 | Spring washer | 90003932025 |
| 21 | Cover | 614010083B |
| 22 | Joint | 614010084B |
| 23 | Bolt | 90003962020 |
| 24 | Seal ring | 90003098014 |
| 25 | Hexagon bolt | 90003800467 |
| 25 | Hexagon bolt | 90003800465 |
| 26 | Spring washer | 90003932023 |
| 27 | Hexagon bolt | 90003802424 |
| 28 | Spring washer | 90003932023 |
| 29 | Nameplate | 612600011550 |
| 30 | Bolt | 90003962621 |
| 31 | Spraying nozzle | 612600010659 |
| 32 | Seal ring | 90003098015 |
| 33 | Pin | 90003909603 |
| 34 | Flywheel | 612600011088 |
| 35 | Cover | 612630030066 |
| 36 | Hexagon bolt | 90003802511 |
| 37 | Stud | 90003813527 |
| 38 | Hexagon nut(2) | 90003888452 |
| 39 | Stud | 90003813537 |
| 40 | Spring washer | 90003931122 |
| 41 | Hexagon nut(1) | 90003871305 |
| 42 | Bolt | 61500010101 |
| 42 | Bolt | 61500010062 |
