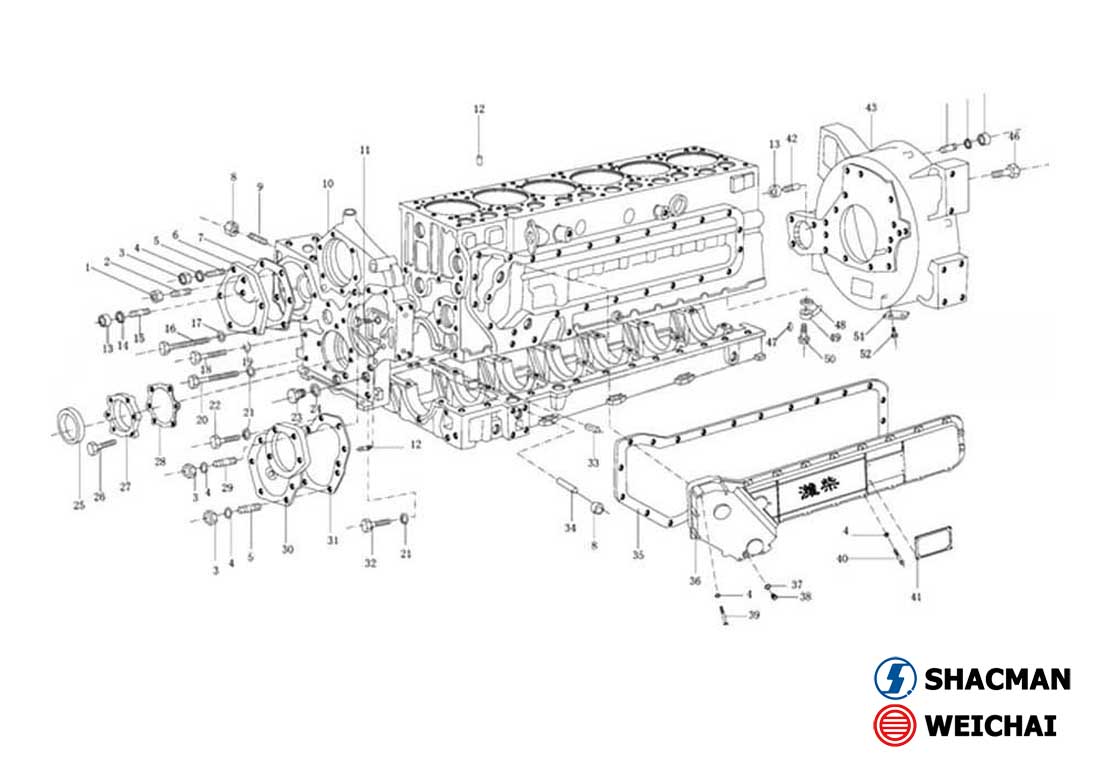

| CYLINDER BODY-TWO | ||
| WEICHAI WD615 ENGINE PARTS CATALOG | ||
| Serial | Part No. | Name |
| 1 | 90003888451 | Nut |
| 2 | 90003813470 | Stud |
| 3 | 90003871352 | Nut |
| 4 | 90003902023 | Spring washer |
| 5 | 90003813429 | Stud |
| 6 | 612600010652 | Cover |
| 7 | 614010040 | Shim |
| 8 | 90003888453 | Nut |
| 9 | 90003813638 | Stud |
| 10 | 612600010932 | Gear |
| 11 | 90003802523 | Bolt |
| 12 | 90003901507 | Pin |
| 13 | 90003888452 | Nut |
| 14 | 90003930012 | Washer |
| 15 | 90003811531 | Stud |
| 16 | 90003802576 | Bolt |
| 17 | 90003932024 | Spning washer |
| 18 | 90003802561 | Bolt |
| 19 | 90003931122 | Bolt |
| 20 | 90003800571 | Bolt |
| 21 | 90003932025 | Spring washer |
| 22 | 90003862524 | Screw |
| 23 | 90003962051 | Bolt |
| 24 | 90003098086 | Seal washer |
| 25 | 61500010037 | Ring |
| 26 | 90003862327 | Screw |
| 27 | 612600010928 | Front oil seal seat |
| 28 | 612600010934 | Shim |
| 29 | 90003813443 | Stud |
| 30 | 61500010008A | Cover |
| 31 | 614010070 | Cover |
| 32 | 90003862532 | Screw |
| 33 | 90003909626 | Pin |
| 34 | 90003813628 | Stud |
| 35 | 614010084B | Joint |
| 36 | 614010083B | Joint |
| 37 | 90003098014 | Seal wahser |
| 38 | 90003962020 | Bolt |
| 39 | 90003800467 | Bolt |
| 39 | 90003800465 | Bolt |
| 40 | 90003802424 | Bolt |
| 41 | 612600010193 | Nameplate |
| 42 | 90003813527 | Stud |
| 43 | 61500010012 | Flywheel |
| 44 | 90003813537 | Stud |
| 45 | 90003871305 | Nut |
| 46 | 61500010101 | Bolt |
| 46 | 61500010062 | Bolt |
| 47 | 90003909603 | Pin |
| 48 | 90003098015 | Seal washer |
| 49 | 612600010659 | Spraying nozzle |
| 49 | 61560010090 | Spraying assembly |
| 50 | 90003962621 | Bolt |
| 51 | 1800210011 | Cover |
| 52 | 90003802511 | Bolt |
