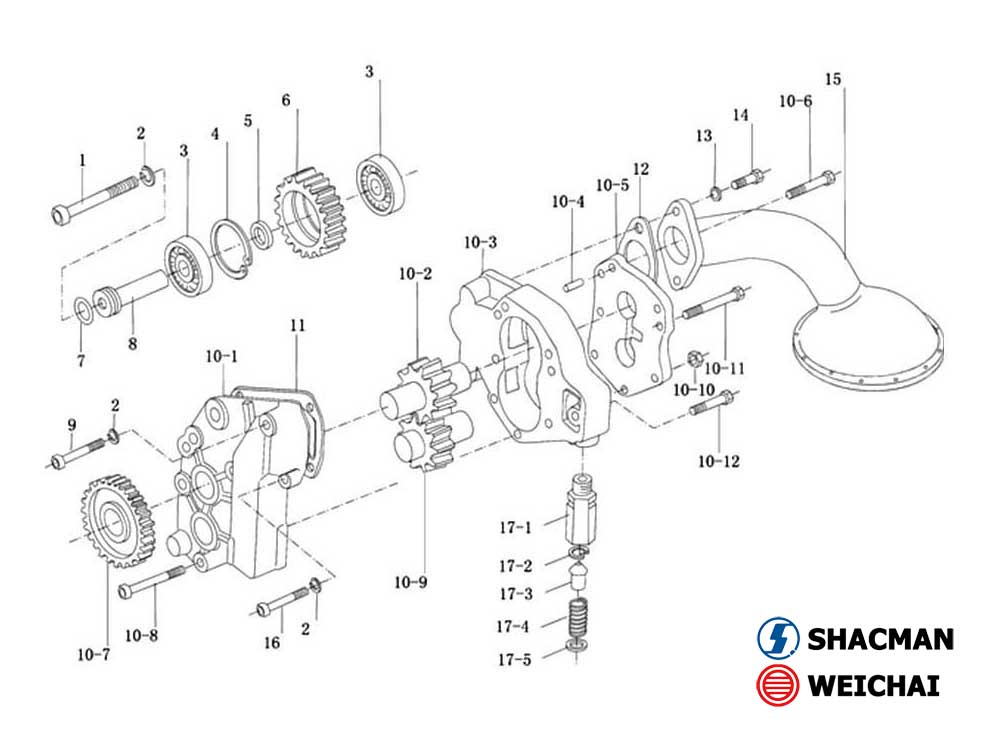

| WEICHAI WD615 ENGINE PARTS CATALOG | ||
| Serial | Part No. | Name |
| 1 | 90003802578 | Bolt |
| 2 | 90003931122 | Spring washer |
| 3 | 900033114lO | Bearing |
| 4 | 90003934732 | Snap ring |
| 5 | 6140749 | Ring |
| 6 | 61407006l | Gear |
| 7 | 614070155 | Seal ring |
| 8 | 6140756 | Gear shaft |
| 9 | 90003800551 | Bolt |
| 10 | AZl500070021A | Oil pump |
| 11 | 614070055 | Shim |
| 12 | 614070078 | Shim |
| 13 | 90003930271 | Washer |
| 14 | 90003802523 | Bolt |
| 15 | 61800070051 | Filter |
| 16 | 90003802527 | Bolt |
| 17 | 61500070099 | Release valve C |
| 10-1 | 61500070029 | Front cover |
| 10-10 | 90012210003 | Nut |
| 10-11 | 90003800458 | Bolt |
| 10-12 | 90003800441 | Bolt |
| 10-2 | AZ1500070019A | Gear assy |
| 10-3 | AZ1500070015A | Housing |
| 10-4 | 90003901420 | Pin |
| 10-5 | 61500070024 | Rear cover |
| 10-6 | Screw | |
| 10-7 | 614070060 | Gear |
| 10-8 | 90003802569 | Bolt |
| 10-9 | AZ1500070020A | Gear |
| 17-1 | 61500070098 | Valve body |
| 17-2 | AZ9003930011 | Snap ring |
| 17-3 | 614070130 | Valve |
| 17-4 | 614070131 | Spring |
| 17-5 | 681270027 | Shim |
