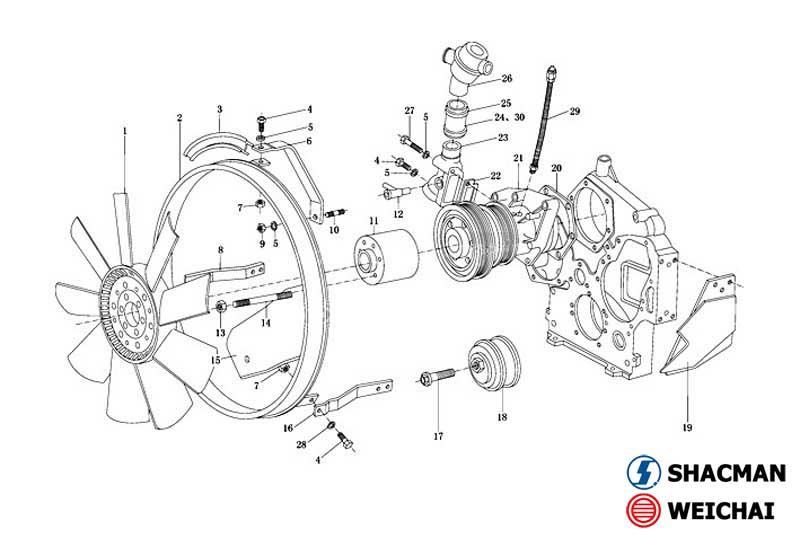

| WATER PUMP & FAN | ||
| WEICHAI WD615 ENGINE PARTS CATALOG | ||
| Serial | Part No. | Name |
| 1 | 612600060398 | Visw hub |
| 2 | 61560060004 | Ring |
| 3 | AZ1560060016 | Siphon |
| 4 | 90003802424 | Bolt |
| 5 | 90003932023 | Spring Washer |
| 6 | 61560060012 | Bracket |
| 7 | 90003888451 | Nut |
| 8 | 61560060010 | Bracket |
| 9 | 90003871252 | Nut |
| 10 | 90003811420 | Stud |
| 11 | 61500060239 | Flange |
| 12 | AZ1560060001 | Pipe connector |
| 13 | 90003888452 | Nut |
| 14 | 90003810020 | Stud |
| 15 | 99100590006 | Left bracket |
| 16 | 61560060011 | Bracket |
| 17 | 90011400001 | Bolt |
| 18 | 612600060391 | Rolt C |
| 19 | 99100590009 | Right bracket |
| 20 | 614060008 | Seal pad |
| 21 | 612600060389 | Water pump ass’y |
| 22 | 614060024 | Joint |
| 23 | 61560060022A | Connector |
| 24 | 612600060518 | Tube |
| 25 | 900003989306 | Clamp |
| 26 | 614060135 | Thermostate ass’y |
| 27 | 90003800467 | Bolt |
| 28 | 90003937283 | Washer |
| 28 | 90003930261 | Washer |
| 29 | 612600060456 | Adding butter thingamy |
| 30 | 61000060276 | Rubber pipe |
