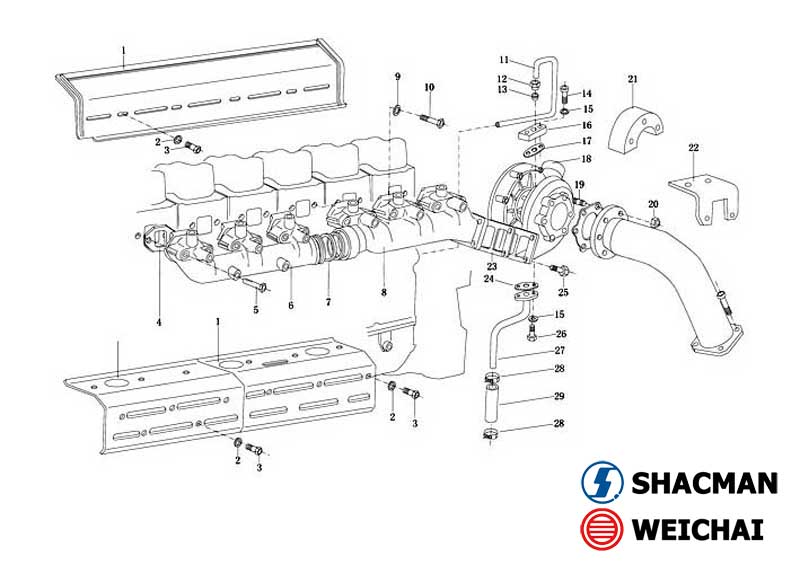

| AIR INLET & EXHAUST PIPE -ONE | ||
| WEICHAI WD615 ENGINE PARTS CATALOG | ||
| Serial | Part No. | Name |
| 1 | 612600110856 | Front heat shield |
| 1 | 612600110857 | Rear heat shield |
| 2 | 90014320002 | Washer |
| 3 | 612600110961 | Bolt |
| 4 | 61560110111 | Exhausf shim |
| 5 | 61560110104 | Bolt |
| 6 | 612600111290 | Pine |
| 6 | 612600110673 | PiDe |
| 7 | 612600110162 | Seal rang |
| 8 | 612600110855 | Pipe |
| 9 | 609070067 | Thrusl washer |
| 10 | 61560110105 | Bolt |
| 11 | 61560070001 | Intake pipe |
| 12 | 90003559513 | Nut |
| 13 | 90003559563 | Clip |
| 14 | 90003862428 | bcrew |
| 15 | 188250083 | Washer |
| 16 | 81560110152 | Flange |
| 17 | 609E110050 | Shim |
| 18 | 61560116227 | Turbocharger |
| 18 | 61560118227 | Turbocharger |
| 18 | 61560110227 | Turbocharger |
| 19 | 81560110187 | Stud |
| 20 | 90003888470 | Nut |
| 21 | 612600110759 | Heat shield |
| 22 | 612600110871 | Bracket |
| 23 | 61560110210 | Shim |
| 24 | 612600110048 | Shim |
| 25 | 61560110241 | Bolt |
| 26 | 61460070014 | Bolt |
| 27 | 612600110361 | Oil pipe |
| 28 | 90003989340 | Clamp |
| 29 | 61260007007l | Pipe |
