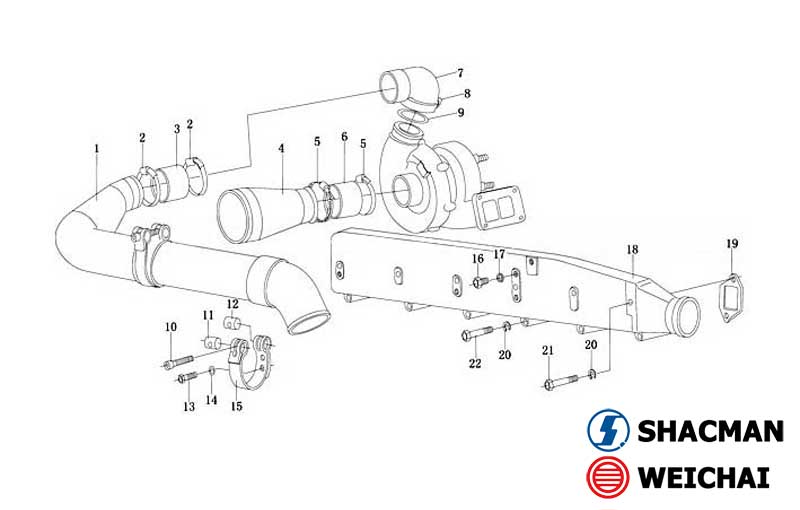

| AIR INLET & EXHAUST PIPE -TWO | ||
| WEICHAI WD615 ENGINE PARTS CATALOG | ||
| Serial | Part No. | Name |
| 1 | 61560110051B | Pipe ass’y |
| 2 | 90003989312 | Clamp |
| 3 | 612600110824 | Pipe |
| 3 | 612600111543 | Pipe |
| 4 | 612600110874 | Air inake pipe |
| 5 | 90003989315 | Clamp |
| 6 | 81560110220 | Rubber pipe |
| 7 | 61560110165 | Pipe |
| 8 | 61560110226 | Clip |
| 9 | 90320035 | Seal ring |
| 10 | 90003862462 | Screw |
| 11 | 209190017 | Pin |
| 12 | 1700550013 | Pin |
| 13 | 90003802415 | Bolt |
| 13 | 90003802411 | Bolt |
| 14 | 609E110036 | Washer |
| 15 | 61560110021 | Clamp |
| 16 | 90003962014 | Plug |
| 17 | 90003098010 | Seal ring |
| 18 | 61560110131 | Air intake pipe ass’y |
| 19 | 61500110024 | Air intake plpe shim |
| 20 | 90003932023 | Spring washer |
| 21 | 614110064 | Bolt |
| 21 | 90003800497 | Bolt |
| 22 | 90003800465 | Bolt |
