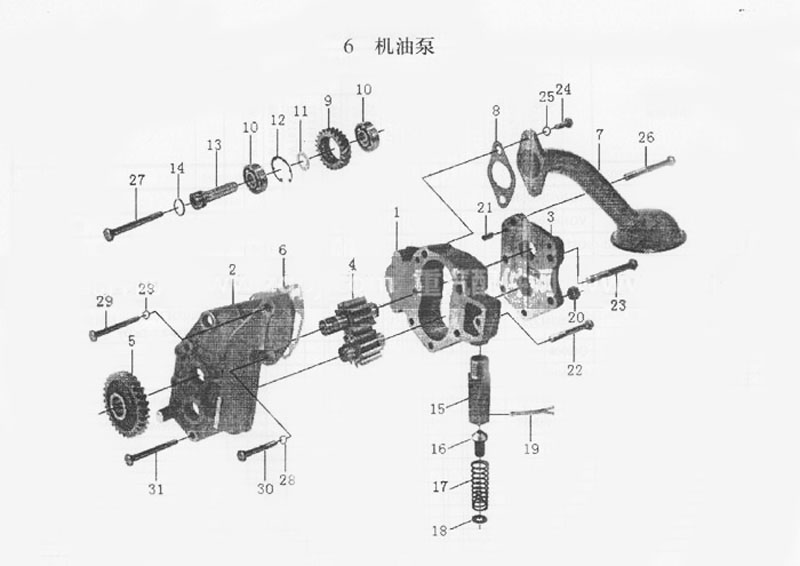

| Serial | Part Number | Name |
| 1 | vg1500070015 | Oil pump housing |
| 2 | vg1500070029 | Front oil pump cover |
| 3 | vg1500070024 | Pump cover |
| 4 | vg1500070020 | Oil pump gear assembly |
| 5 | vg14070060 | Oil pump drive gear |
| 6 | vg14070055 | Oil pump gasket |
| 7 | vg1800070051 | Set filter assembly |
| 8 | vg140778 | Gasket |
| 9 | vg14070061 | Oil pump intermediate gear |
| 10 | 190003311410 | Radial Ball Bearings |
| 11 | vg14070049 | Spacer ring |
| 12 | 190003934732 | Cam hole ring |
| 13 | vg14070056 | Intermediate gear shaft |
| 14 | vg14070155 | Seals |
| 15 | vg1500070098 | Valve body |
| 16 | vg14070130 | Pressure limiting valve |
| 17 | vg14070131 | spring |
| 18 | vg681270027 | Gasket |
| 19 | vg9003920029 | Cotter |
| 20 | 190003871303 | I-type hexagon nuts |
| 21 | 190003901420 | Cylindrical pin |
| 22 | 190003800530 | Hex head bolts |
| 23 | 190003800566 | Hex head bolts |
| 24 | 190003802523 | Hex head bolts |
| 25 | 190003932025 | Saddle-shaped spring washer |
| 26 | q218b1070 | Hexagon socket head screws |
| 27 | 190003802578 | Hex head bolts |
| 28 | 190003931122 | Spring washer |
| 29 | 190003800551 | Hex head bolts |
| 30 | 190003802527 | Hex head bolts |
| 31 | 190003800579 | Hex head bolts |
| vg1560070099 | Pump pressure limiting valve assembly | |
| vg1500070021 | Oil pump assembly | |
| vg1800070052 | Set filter assembly |
