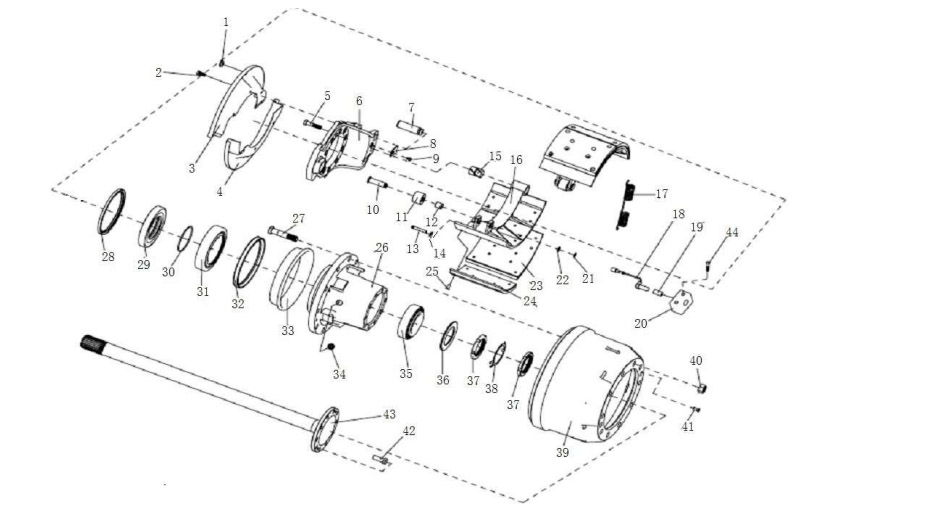

| BRAKES, SHACMAN DRIVING AXLE PARTS CATALOGS | ||||
| 序号 | 代号 | 名称 | Name | 数量 |
| NO | Part No | Designation | Quantity | |
| 1 | 1.88E+11 | 密封塞 | Packing ring | 4 |
| 2 | Q150B1012 | 六角头螺栓 | Bolt | 12 |
| 3 | DZ9112340012 | 防尘罩（左） | Dirt guard（left） | 2 |
| 4 | DZ9112340013 | 防尘罩（右） | Dirt guard（right） | 2 |
| 5 | Q151B1445TF2 | 六角头螺栓-细牙 | Bolt | 20 |
| 6 | DZ9112340097 | 制动底板（右） | Brake floor（right） | 1 |
| DZ9112340143 | 制动底板（左） | Brake floor（left） | 1 | |
| 7 | 81.50212.0032 | 制动蹄销 | Pin | 4 |
| 8 | 81.90801.0225 | 护板 | Cover sheet | 2 |
| 9 | Q184A1018TF2 | 六角法兰面螺栓 | Bolt | 2 |
| 10 | 81.50211.0030 | 销 | Pin | 4 |
| 11 | 81.50213.0013 | 滚轮 | Roller | 4 |
| 12 | 81.93021.0220 | 衬套 | Bush | 4 |
| 13 | 81.50211.0018 | 回位弹簧销 | Return spring pin | 4 |
| DZ95009440010 | 回位弹簧销 | Return spring pin | 4 | |
| 14 | Q43112F3 | 轴用弹性挡圈 | Circlip for axle | 8 |
| 15 | 81.93021.0117 | 衬套 | Bush | 4 |
| 16 | DZ9112340061 | 制动蹄 | Brake shoe | 4 |
| DZ90129340061 | 制动蹄总成（不带摩擦片） | Brake shoe | 4 | |
| 17 | 81.97610.0115 | 回位弹簧 | Return spring | 4 |
| DZ95009440015 | 回位弹簧 | Return spring | 4 | |
| 18 | DZ9100580214 | 传感器 | Feeler search | 2 |
| 19 | DZ9100580215 | 传感器衬套 | Bush of Feeler search | 2 |
| 20 | DZ9112340053 | ABS 支架 | Bracket for ABS | 2 |
| 21 | 1.90004E+11 | 轴用弹性挡圈 | Circlip for axle | 4 |
| 22 | 06.15113.2615 | 垫圈 | Washer | 4 |
| 23 | DZ9112340063 | 下摩擦片 | Lower friction plate | 4 |
| 24 | DZ9112340062 | 上摩擦片 | Upon friction plate | 4 |
| 25 | 81.92201.0109 | 铆钉 | Clinch | 按需 |
| 81.92201.0108 | 铆钉 | Clinch | 按需 | |
| 26 | DZ9112340309 | 轮毂 | Wheel hub | 2 |
| DZ9112340310 | 轮毂 | Wheel hub | 2 | |
| 27 | DZ9112340123 | 车轮螺栓 | Wheel bolt | 20 |
| 28 | DZ90129340063 | 油封(左） | Grease packing | 1 |
| DZ90129340064 | 油封(右) | Grease packing | 1 | |
| 29 | DZ9112340017 | 隔环 | Space ring | 2 |
| 30 | 1.99012E+11 | 密封圈 | Packing ring | 2 |
| 31 | 30222A0FAG | 圆锥滚子轴承 | Row-steep roller bearing | 2 |
| 32 | DZ9112340008 | 齿圈 | Gear ring | 2 |
| 33 | DZ9112340010 | 挡油盘 | Oil baffle disc | 2 |
| 34 | DZ9003962021 | 内六角锥形螺塞 | Socket head cone plug screw | 2 |
| 35 | 06.32499.0123 | 圆锥滚子轴承 | Row-steep roller bearing | 2 |
| 36 | DZ9112340016 | 止推垫环 | Thrust gasket ring | 2 |
| 37 | DZ9112340014 | 锁紧螺母 | Nut | 4 |
| 38 | DZ9112340018 | 止退垫圈 | Thrust washer | 2 |
| 39 | DZ9112340006 | 制动鼓 | Brake drum | 2 |
| 40 | 1.90004E+11 | 车轮螺母 | Wheel nut | 20 |
| 41 | Q2541020 | 十字槽沉头螺钉 | Slit bolt | 4 |
| 42 | Q151B1645TF2 | 六角头螺栓-细牙 | Bolt | 20 |
| 43 | DZ9112340158 | 半轴（左） | Half axis | 1 |
| DZ9112340209 | 半轴（右） | Half axis | 1 | |
| 44 | Q151B0850 | 六角头螺栓 | Bolt | 4 |
