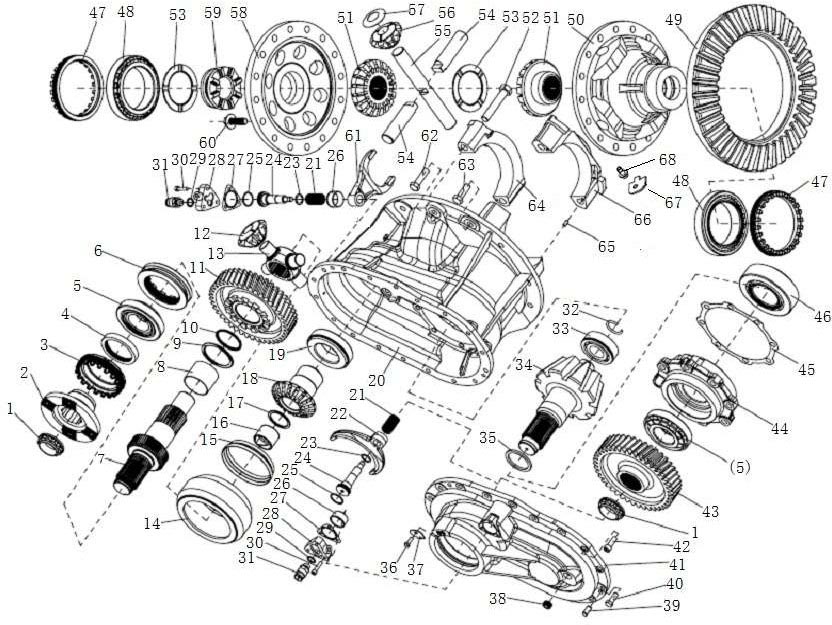

1ST/FRONT REAR AXLE MIDDLE SET, SHACMAN DRIVING AXLE PARTS CATALOGS
序号 代号 名称 Name 数量
NO Part No Designation Quantity
1 DZ95149320054 十二角螺母 Flange nut 2
2 HD469-2502012 凸缘 Φ180 FlangeΦ180 1
3 HD469-2502014 调整螺母 Adjusting nut 1
4 DZ9112320920 主减油封 Axle seal ring 1
5 31313 圆锥滚子轴承 Row-steep roller bearing 2
6 DZ90129320102 滑动啮合套 Sliding engage cowl 1
7 HD469-2502011 贯通轴(输入端) Perforation shaft(input) 1
8 HD469-2502019 衬套 Bush 1
9 DZ95149320064 止推垫片 Stop shim 1
  DZ95149320065 止推垫片 Stop shim 1
  DZ95149320066 止推垫片 Stop shim 1
10 HD469-2502017 垫环 Shoulder ring 1
11 DZ90129320101 主动圆柱齿轮 Active column gear 1
12 HD469-2510013 行星齿轮 Planet gear 4
13 HD469-2510014 十字轴 Cross axle 1
14 HD469-2510011 轴间差速器壳 Differential case of axle 1
15 HD469-2510012 集油罩 Collect oil cover 1
16 HD469-2510015 衬套 Bush 1
17 HD469-2510017 调整垫圈 Adjusting shim 1
18 HD469-2510016 半轴齿轮 Axle shaft gear 1
19 32215 圆锥滚子轴承 Roller bearing 1
20 HD469-2502027 中桥主减速器壳 Final drive case of cross axle 1
  HD469-2502052 中桥主减速器壳 Final drive case of cross axle 1
21 HD469-2406011 差速锁回位弹簧 Spring 2
22 HD469-2511011 拨叉 Frok 1
23 HD469-2402014 垫圈 Shim 2
  HD469-2402016 垫圈 Shim 2
24 HD469-2406013 活塞杆 Plunger 2
25 HD469-2406015 O 形圈 O-ring 2
26 HD469-2406014 衬套 Bush 2
27 HD469-2406017 密封衬垫 shim 2
28 HD469-2406012 缸盖 Gasket 2
29 Q72318T5F 密封垫圈 Seal washer 2
30 Q150B0835 螺栓 Bolt 6
31 81.25503.0244 差速锁压力开关 Gearbox switch 2
32 HD469-2402055 止推环 Stop ring 1
33 HD469-2402012 圆柱滚子轴承 Roller bearing 1
34 HD469-2502031 主动锥齿轮 Active taper gear 1
  HD469-2502033 主动锥齿轮 Active taper gear 1
  HD469-2502035 主动锥齿轮 Active taper gear 1
  HD469-2502037 主动锥齿轮 Active taper gear 1
  HD469-2502039 主动锥齿轮 Active taper gear 1
  HD469-2502042 主动锥齿轮 Active taper gear 1
35 81.90770.0100 调整垫片 Shim 按需
36 HD469-2502015 锁片 Lock piece 1
37 Q1800816TF2 六角头螺栓 Bolt 1
38 DZ9003962021 内六角锥形螺塞 Square head tapered plug 1
39 Q5211228 圆柱销 Pin 2
40 Q1811235TF2 六角头螺栓 Bolt 14
41 HD469-2502025 过桥箱盖 Pass-axle box cap 1
42 06.02191.2611 内六角圆柱头螺钉 Bolt 4
43 HD469-2502029 被动圆柱齿轮 Passive column gear 1
44 HD469-2502030 轴承座 Bearing block 1
45 HD469-2402020 调整垫片 Shim 按需
46 HD469-2402100 圆锥滚子轴承 Row-steep roller bearing 1
47 81.35125.0024 调整螺母 Adjusting nut 2
48 32024 圆锥滚子轴承 Row-steep roller bearing 2
49 HD469-2502032 被动锥齿轮 Passive bevel gear 1
  HD469-2502034 被动锥齿轮 Passive bevel gear 1
  HD469-2502036 被动锥齿轮 Passive bevel gear 1
  HD469-2502038 被动锥齿轮 Passive bevel gear 1
  HD469-2502041 被动锥齿轮 Passive bevel gear 1
  HD469-2502043 被动锥齿轮 Passive bevel gear 1
50 HD469-2503012 差速器壳（左） Differential case (left) 1
  HD469-2503011 差速器壳（左） Differential case (left) 1
51 HD469-2403015 半轴齿轮 Axle shaft gear 2
52 DZ90001500006 六角头螺栓 Bolt 4
53 HD469-2403017 半轴齿轮垫片 Axle shaft gear washer 2
54 HD469-2403019 十字轴 Cross axle 2
55 HD469-2403021 十字轴 Cross axle 1
56 HD469-2403016 行星齿轮 Plant gear 4
57 HD469-2403018 行星齿轮垫片 Plant gear washer 4
58 HD469-2403014 差速器壳（右） Differential case (right) 1
  HD469-2403011 差速器壳（右） Differential case (right) 1
59 HD469-2406018 滑动啮合套 Sliding engage cowl 1
60 HD469-2402011 六角头螺栓 Bolt 16
61 HD469-2506011 拨叉 Fork 1
62 Q1811660TF2 六角头螺栓 Bolt 2
63 Q1811650TF2 六角头螺栓 Bolt 10
64 HD469-2502028 瓦盖（左） Bearing cap 1
65 Q5220816 圆柱销 Pin 4
66 HD469-2402043 瓦盖（右） Bearing cap（right） 1
67 DZ9112320028 锁止片 Locking shim 2
68 Q1800816 六角法兰面承面带齿螺栓 Bolt 2
