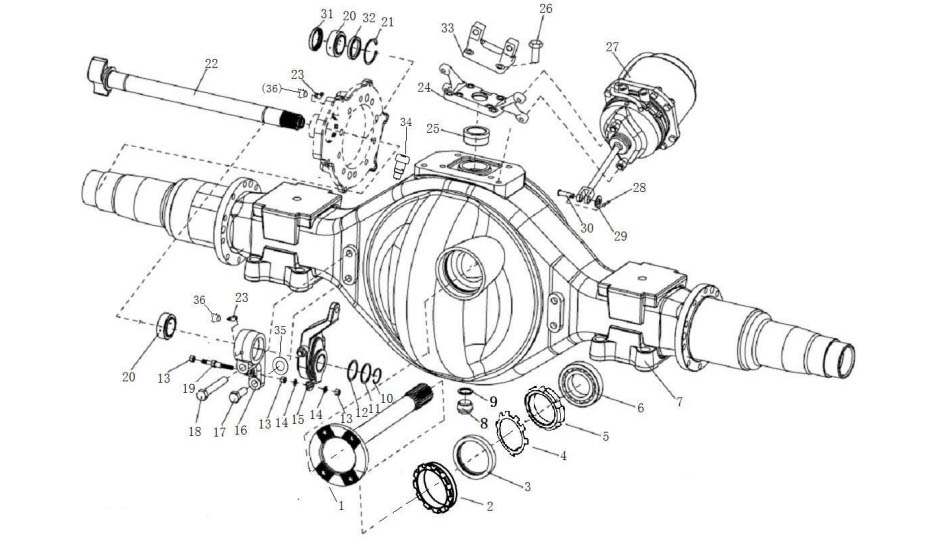

| MIDDLE AXLE SHELL, SHACMAN DRIVING AXLE PARTS CATALOGS | ||||
| 序号 | 代号 | 名称 | Name | 数量 |
| NO | Part No | Designation | Quantity | |
| 1 | DZ9114320905 | 贯通轴（输出轴） | Perforation shaft(output) | 1 |
| 2 | 81.90685.0053 | 调整螺母 | Adjusting nut | 1 |
| 3 | HD95129320010 | 油封 | Axle seal ring | 1 |
| 4 | Q41408 | 锥形锯齿锁紧垫圈 | Space ring | 1 |
| 5 | DZ95149320053 | 开槽圆螺母 | Shim | 1 |
| 6 | DZ90149326012 | 四点接触球轴承 | Ball bearing | 1 |
| 7 | DZ9114331960 | 中桥壳总成(469) | Axle case assembly(469) | 1 |
| DZ90129330004 | 中桥壳总成(469) | Axle case assembly(469) | 1 | |
| DZ90129330083 | 中桥壳总成(469) | Axle case assembly(469) | 1 | |
| DZ90129330089 | 中桥壳总成(469) | Axle case assembly(469) | 1 | |
| 8 | 158600330015 | 磁性螺塞总成 | Magnetic plug assembly | 1 |
| 9 | Q72336 | 密封垫圈 | Seal washer | 1 |
| 10 | 190003933116 | 轴用弹性挡圈 | Circlip for axle | 2 |
| 11 | 108000320028 | 调整垫圈 | Adjuster shim | 按需 |
| 108000320029 | 调整垫圈 | Adjuster shim | 按需 | |
| 108000320030 | 调整垫圈 | Adjuster shim | 按需 | |
| 108000320046 | 调整垫圈 | Adjuster shim | 按需 | |
| 12 | 188000340022 | 垫圈 | Adjuster shim | 2 |
| 13 | Q340B08 | Ⅰ型六角螺母 | Nut | 6 |
| 14 | Q40108 | 平垫圈 | Plain washer | 4 |
| 15 | DZ9100340046 | 自动间隙调整臂（右） | Brake adjuster (right) | 1 |
| DZ9100340045 | 自动间隙调整臂（左） | Brake adjuster (left) | 1 | |
| 199000340057 | 间隙调整臂（右） | Brake adjuster (right) | 1 | |
| 199000340056 | 间隙调整臂（左） | Brake adjuster (left) | 1 | |
| 16 | DZ9112340046 | 凸轮轴支座 | Bracket(right) | 2 |
| 17 | Q151B1640TF2 | 六角头螺栓 | Bolt | 2 |
| 18 | Q151B16105TF2 | 六角头螺栓 | Bolt | 2 |
| 19 | 81.91020.0318 | 双头螺柱 | Stud | 2 |
| 20 | 188000340017 | 衬套 | Bush | 4 |
| 21 | 190003933300 | 轴用弹性挡圈 | Circlip for axle | 2 |
| 22 | DZ9112340117 | 制动凸轮轴（左） | Brake camshaft(left) | 1 |
| DZ9112340118 | 制动凸轮轴（右） | Brake camshaft(right) | 1 | |
| 23 | 06.38070.0102 | 滑脂嘴 | Grease nipple | 4 |
| 24 | 81.43240.0112 | 气室支架 | Bracket | 1 |
| DZ9114340179 | 气室支架 | Bracket | 1 | |
| DZ9114340169 | 气室支架 | Bracket | 1 | |
| DZ90129340055 | 气室支架 | Bracket | 1 | |
| 25 | 81.93001.0328 | 套筒 | Sleeve | 1 |
| 26 | 81.90030.0135 | 内六角螺栓 | Bolt | 5 |
| 06.02812.1115 | 六角头螺栓 M18*2*50 | Bolt | 2 | |
| Q1811645TF2 | 六角头螺栓 M16*1.5*45 | Bolt | 2 | |
| 27 | DZ9112360309 | 弹簧制动气室 | Spring brake air-chamber | 4 |
| DZ9112360331 | 弹簧制动气室 | Spring brake air-chamber | 1 | |
| 28 | Q5004022 | 开口销 | Cotteer pin | 1 |
| 29 | Q40114 | 平垫圈 | Plain washer | 1 |
| 30 | 190003903661 | 销轴 | Pin roll | 2 |
| 31 | 188000340023 | O 型密封圈 | Grease packing | 2 |
| 32 | 188000440010 | 附加垫片 | Grease packing | 2 |
| 33 | DZ9112330730 | 中桥上推力杆座总成 | Bracket for front rear axle | 1 |
| DZ90129340051 | 中桥上推力杆支架 | Bracket for front rear axle | 1 | |
| 34 | 199000330006 | 通气口总成 | Assembly for venthole | 1 |
| 35 | DZ9112340330 | 调整垫片 | Adjuster shim | 按需 |
| DZ9112340331 | 调整垫片 | Adjuster shim | 按需 | |
| DZ9112340332 | 调整垫片 | Adjuster shim | 按需 | |
| DZ9112340333 | 调整垫片 | Adjuster shim | 按需 | |
| DZ9112340334 | 调整垫片 | Adjuster shim | 按需 | |
| DZ9112340335 | 调整垫片 | Adjuster shim | 按需 | |
| DZ9112340336 | 调整垫片 | Adjuster shim | 按需 | |
| 36 | 81.96002.0191 | 防尘罩 | Dirt guard | 4 |
