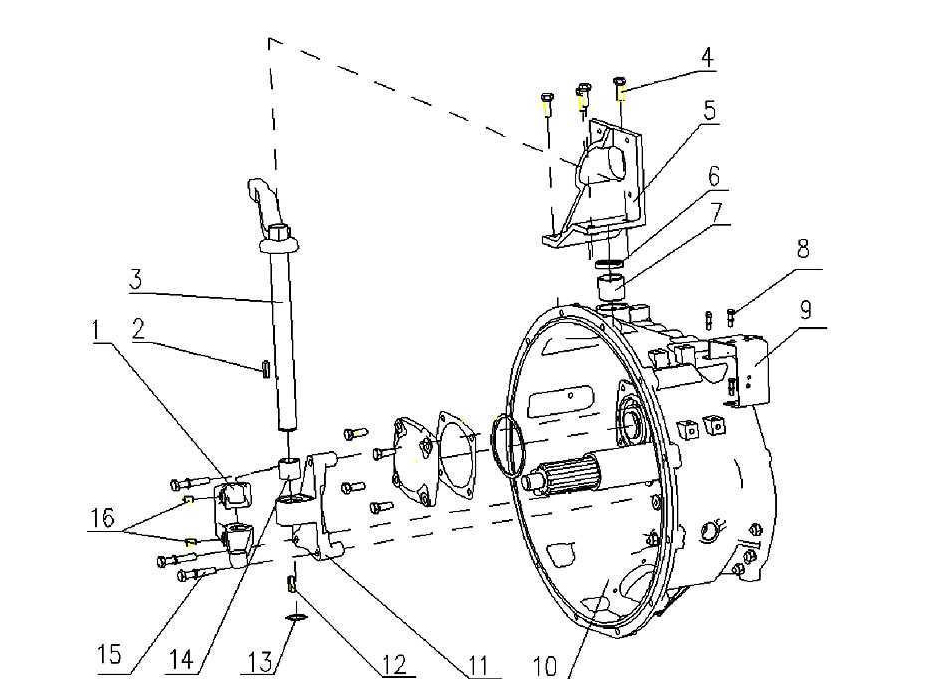

| TRANSMISSION ASSY SEVEN, HW19710, SINOTRUK SPARE PARTS CATALOG | |||
| Serial | Number | Name | Quantity |
| 1 | AZ2214260001 | clutch separating fork | 1 |
| 02、12 | Q5510825 | flat key | 1 |
| 3 | AZ2203260002 | shifting shaft | 1 |
| 4 | Q150B1030 | hexagon head bolt | 4 |
| 04、08、15 | Q40310 | spring gasket | 4 |
| 5 | AZ2229260015 | booster cylinder support | 1 |
| 6 | WG2229003030 | compound bushing 30×34×30 | 1 |
| 7 | AZ9003073001 | framework seal | 1 |
| 8 | Q150B1020 | hexagon head bolt | 4 |
| 8 | Q40310 | spring gasket | 4 |
| 9 | WG2229270004 | soft shaft support (pulling type) | 1 |
| 10 | AZ2220000001 | front shell of transmission | 1 |
| 11 | AZ2229260001 | shifting shaft support | 1 |
| 12 | Q5510825 | flat key | 1 |
| 13 | Q43130 | elastic retaining ring for shaft | 1 |
| 14 | WG2229003030 | compound bushing 30×34×30 | 1 |
| 15 | AZ9003801062 | hexagon head bolt | 3 |
| 15 | Q40310 | spring gasket | 3 |
| 16 | Q2881016F9 | inner hexagon cone point screw | 2 |
