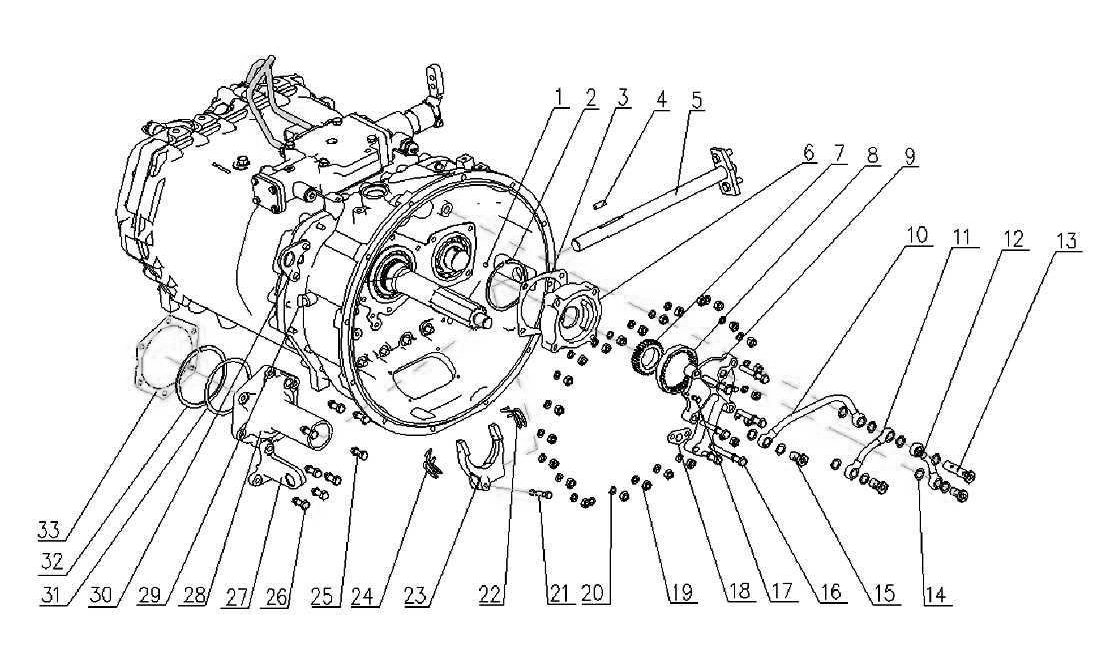

| TRANSMISSION ASSY TWO, HW19710, SINOTRUK SPARE PARTS CATALOG | |||
| Serial | Number | Name | Quantity |
| 1 | AZ9003338000 | steel ball | 1 |
| 2 | AZ9003990100 | retaining ring | 1 |
| 3 | WG2229000002 | cap pad for deputy gear box | 1 |
| 4 | Q5510825 | flat key | 1 |
| 5 | WG2203260003 | shifting shaft assy | 1 |
| 6 | AZ2222240001 | oil pump body | 1 |
| 7 | AZ2210240001 | driving gear of oil pump | 1 |
| 8 | AZ2210240002 | annular gear of oil pump | 1 |
| 9 | AZ2222240002 | cap for oil pump | 1 |
| 10 | AZ2203240003 | oil inlet pipe | 1 |
| 11 | AZ2203240002 | oil inlet pipe for input shaft | 1 |
| 12 | AZ2203240001 | oil outlet pipe | 1 |
| 13 | AZ9003961670 | hollow bolt | 1 |
| 14 | Q72316 | sealing gasket | 10 |
| 15 | 190003962627 | hollow bolt | 3 |
| 16 | Q150B1090 | hexagon head bolt | 1 |
| 16 | Q150B1040 | hexagon head bolt | 1 |
| 16 | Q150B1070 | hexagon head bolt | 4 |
| 16 | Q40110 | flat gasket | 2 |
| 16、20、25、26 | Q40310 | spring gasket | 4 |
| 17 | Q150B0618 | hexagon head bolt | 1 |
| 17 | Q40306 | spring gasket | 1 |
| 18 | WG2229240003 | paper pad for oil inlet pipe | 1 |
| 19 | Q341B10 | hexagon nut | 25 |
| 20 | Q40310 | spring gasket | 25 |
| 21 | Q150B0835 | hexagon head bolt | 1 |
| 21 | Q40308 | spring gasket | 1 |
| 22 | AZ2214260010 | levo-rotating clip | 1 |
| 23 | WG2214260010 | clutch separating shifting fork | 1 |
| 24 | AZ2214260015 | dextro-rotating clip | 1 |
| 25 | WG9003801030 | bolt set | 5 |
| 25 | Q40310 | spring gasket | 5 |
| 26 | Q150B1050 | hexagon head bolt | 1 |
| 26 | Q150B1030 | hexagon head bolt | 2 |
| 26 | Q40310 | spring gasket | 3 |
| 27 | AZ2203260101 | shifting shaft support assy | 1 |
| 28 | AZ2203020106 | input shaft cap and oil-guiding ring | 1 |
| 28 | AZ2203020108 | input shaft cap and oil-guiding ring | 1 |
| 29 | 190003963127 | grease nipple | 1 |
| 30 | WG2229000003 | hoisting plate | 1 |
| 31 | AZ2208020002 | input shaft bearing adjusting pad set | need |
| 32 | AZ9003990120 | retaining ring | 1 |
| 33 | WG2229020008 | paper pad for input shaft cap | 1 |
