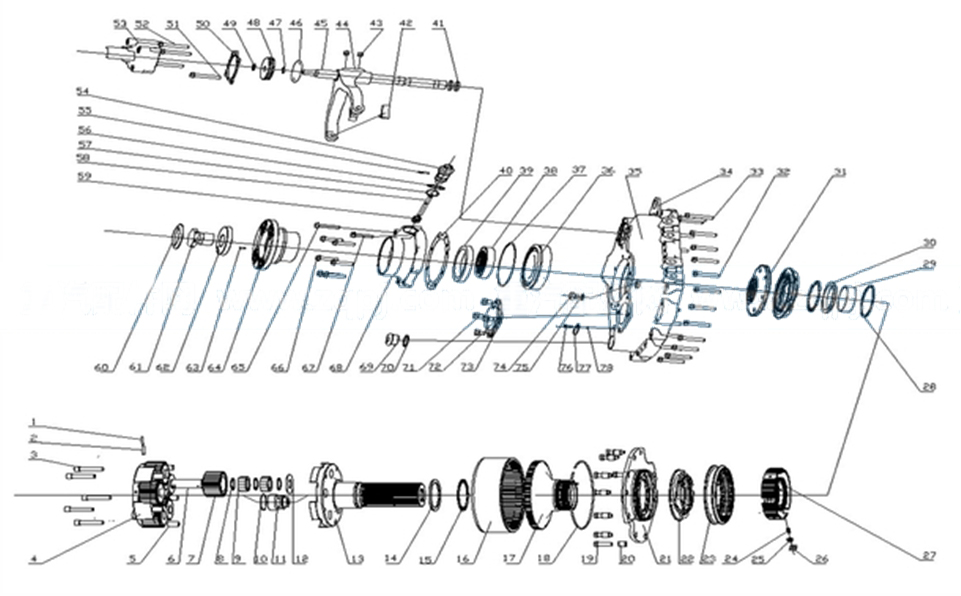

| DEPUTY CASE OF RANGE GEAR, HW19710T | ||
| Serial | Name | Number |
| 1 | elastic colume pin | q5280430 |
| 2 | elastic colume pin | q5280630 |
| 3,4,5,13 | planet carrier | az2203100105 |
| 3 | screw | az9003821255 |
| 4 | front body of planet carrier | az2225100003 |
| 5 | bushing | wg2229100001 |
| 6 | planetary wheel shaft | wg2212100001 |
| 7 | planetary wheel | az2210100012 |
| 8 | gasket | wg2229100007 |
| 9 | colume roller | wg9003321118 |
| 10 | elastic retaining ring | az9003991056 |
| 11 | oil guiding connector | wg2229100209 |
| 12 | gasket for planetary wheel | wg2229100008 |
| 13 | rear body | az2225100004 |
| 14 | retaining ring | wg2229100201 |
| 15 | pushing bearing | wg9003991113 |
| 16 | annular gear | wg2210100005 |
| 17 | gear ring support | wg2210100021 |
| 18 | steel retaining ring | wg2229100012 |
| 19 | set - bolt and spring gasket | q1401235 |
| 20 | sleeve | wg2229100002 |
| 21 | low gear cone hub | wg2203100108 |
| 22 | synchronizer ring | wg2203100107 |
| 23 | gear sleeve | az2210100024 |
| 24 | synchronizer spring | wg2229100211 |
| 25 | synchronizer locking block | wg2229040301 |
| 26 | synchronizer block seat | wg2229040302 |
| 27 | gear seat of range gear | az2203100110 |
| 28 | steel retaining ring for shaft | q433110 |
| 29 | spacer bush for planet carrier | wg2229100203 |
| 30 | retaining ring | wg2229100202 |
| 31 | cone hub | az2210100026 |
| 32 | set for bolt and spring gasket | q1421055 |
| 33 | set for bolt and spring gasket | q1421060 |
| 34 | hanging plate | wg2229100210 |
| 35 | rear house for transmission | wg2220100201 |
| 36 | ball bearing for output shaft | az9003316317 |
| 37 | ajusting gasket set | az2208100003 |
| 38 | worm rod for mileage sensor | az2210100027 |
| 39 | output shaft oil seal | wg9003070107 |
| 40 | rear cap paper pad | wg2229100205 |
| 41 | air cylinder sealing ring | wg2229100076 |
| 42 | speed changing fork | wg2229100206 |
| 43 | locking screw | wg2229100207 |
| 44 | shifting fork for range gear | wg2214100004 |
| 45 | fork shaft for range gear | wg2214100005 |
| 46 | O ring | wg9003076900 |
| 47 | O ring | wg9003071700 |
| 48 | piston for range gear | wg2229100050 |
| 49 | hexagonal nut | wg9003870016 |
| 50 | cylinder paper pad | wg2229100049 |
| 51 | set for bolt and spring gasket | q1421065 |
| 52 | set for bolt and spring gasket | q1421065 |
| 53 | cylinder of range gear | wg2222100009 |
| 54~59 | connector of mileage sensor | wg2203100009 |
| 54 | connector of mileage sensor | wg2222100002 |
| 55 | colume pin | q5220526 |
| 56 | oil seal for connector | az9003071001 |
| 57 | O ring | az9003072500 |
| 58 | small gear shaft | az2212100002 |
| 59 | small gear | az2210100016 |
| 60 | locking plate | wg2229100074 |
| 61 | bolt | wg2229100073 |
| 62 | pressure plate | wg2229100072 |
| 63 | elastic colume pin | q5280514 |
| 64 | output flange | az2210100028 |
| 65 | bolt | az9003801075 |
| 66 | set for bolt and spring gasket | q1421045 |
| 67 | bolt with hole on head | q170b1045 |
| 67 | spring gasket | q40310 |
| 68 | bearing cap for output shaft | wg2222100051 |
| 69 | plug | wg2229100208 |
| 70 | sealing ring | wg9003073642 |
| 71 | hexagonal head bolt | q150b1216 |
| 71 | spring gasket | q40312 |
| 72 | hole cap plate for PTO | wg2229100047 |
| 73 | gasket for plate | wg2229100048 |
| 74 | sealing gasket | q72316 |
| 75 | hexagonal head plug | q617b16 |
| 76 | hexagonal head bolt | q150b0820 |
| 77 | cover plate | wg2229100075 |
| 78 | O ring | wg9003070800 |
