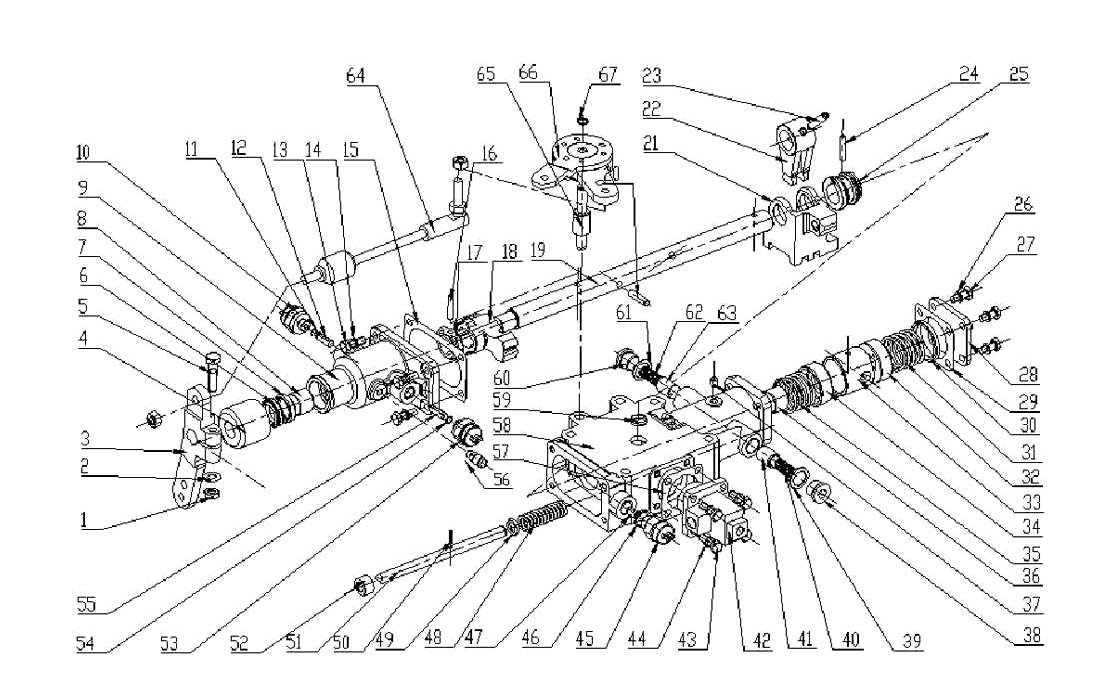

| SMALL CAP SET (DOUBLE ROD) | |||
| SINOTRUK HW20716 TRANSMISSION | |||
| Serial | Number | Name | Quantity |
| 1 | Q340B10T13F2 | I type hex nut | 1 |
| 2 | Q41810 | spring gasket | 1 |
| 3 | WG2214210004 | shifting rocking arm | 1 |
| 4 | WG2229210026 | dustproof cover | 1 |
| 5 | Q150B1040TF2 | hex head bolt | 1 |
| 6 | AZ9003072502 | outer oil seal | 1 |
| 7 | AZ9003072501 | inner oil seal | 1 |
| 8 | WG2229002520 | compound bushing SF225X28X20 | 1 |
| 9 | WG2222210003 | end cover of small cap (rocking arm side) | 1 |
| 10 | 179100710068 | pressure switch (open) | 1 |
| 11 | Q43708 | steel retaining ring for shaft | 1 |
| 12 | WG2229210028 | sensor lifting pin | 1 |
| 13 | Q150B0825 | hex head bolt | 4 |
| 14 | Q40308 | spring gasket | 4 |
| 15 | WG2229210017 | end cover gasket | 1 |
| 16 | Q5280632 | elastic column pin | 1 |
| 16、24 | Q5280632 | elastic column pin | 1 |
| 17 | WG2229210014 | sensor driving ring | 1 |
| 18 | WG2229210013 | self locking block | 1 |
| 19 | WG2212210003 | shifting shaft (double shaft) | 1 |
| 20 | WG2229210012 | driving pin | 1 |
| 21 | WG2214210001 | interlocking fork | 1 |
| 22 | WG2214210002 | shift head | 1 |
| 23 | WG2229210009 | pin | 1 |
| 25 | WG2229210002 | high-low gear positioning ring | 1 |
| 26 | Q40308 | spring gasket | 4 |
| 27 | Q150B0820 | hex head bolt | 4 |
| 28 | WG2229210023 | end cover of small cap (range gear lock side) | 1 |
| 29 | WG2229210024 | end cover gasket | 1 |
| 30 | WG2229210022 | retainer | 1 |
| 31 | WG2229210021 | spring | 1 |
| 32 | WG2229210004 | seat ring | 1 |
| 33 | WG2229210005 | spacer sleeve | 1 |
| 34 | WG2229210004 | seat ring | 1 |
| 35 | WG2229210003 | spring | 1 |
| 36 | WG2229002520 | compound bushing SF225X28X20 | 1 |
| 37 | WG2229210006 | screw | 1 |
| 38 | 190003960005 | inner hex column screw plug | 1 |
| 39 | Q72320 | sealing gasket | 1 |
| 40 | WG2229210020 | range gear lock spring | 1 |
| 41 | WG2229210018 | range gear locking pin | 1 |
| 42 | AZ2203250001 | double H valve | |
| 43 | Q218B0820 | inner hex column head screw | |
| 44 | Q40308 | spring gasket | |
| 45 | WG2209280002 | pressure switch (closed) | |
| 46 | WG2229280001 | sealing gasket | |
| 47 | WG2229210027 | neutral position sensor lifting pin | |
| 48 | WG2229210015 | self locking spring | 1 |
| 49 | WG2229210011 | spring retainer | 1 |
| 50 | AZ9003343178 | needle bearing | 1 |
| 51 | WG2212210002 | self locking pin shaft | 1 |
| 52 | WG2229210001 | bushing | 1 |
| 53 | WG2209280003 | pressure switch (open) | 1 |
| 54 | Q43708 | steel retaining ring for shaft | 1 |
| 55 | WG2229210028 | neutral position sensor lifting pin | 1 |
| 56 | Q901 | breather plug | 1 |
| 57 | AZ2229250005 | gasket for double H valve | |
| 58 | AZ2222210101 | small cap housing | 1 |
| 59 | Q72220 | plug | 1 |
| 60 | 190003960005 | inner hex column plug | 1 |
| 61 | Q72320 | sealing gasket | 1 |
| 62 | WG2229210020 | range gear locking spring | 1 |
| 63 | WG2229210018 | range gear locking pin | 1 |
| 64 | WG2229210041 | supporting rod | 1 |
| 65 | WG2229270003 | selector supporting rod | 1 |
| 66 | WG2229210040 | selector rod | 1 |
| 67 | Q43112 | elastic retaining ring for shaft | 1 |
