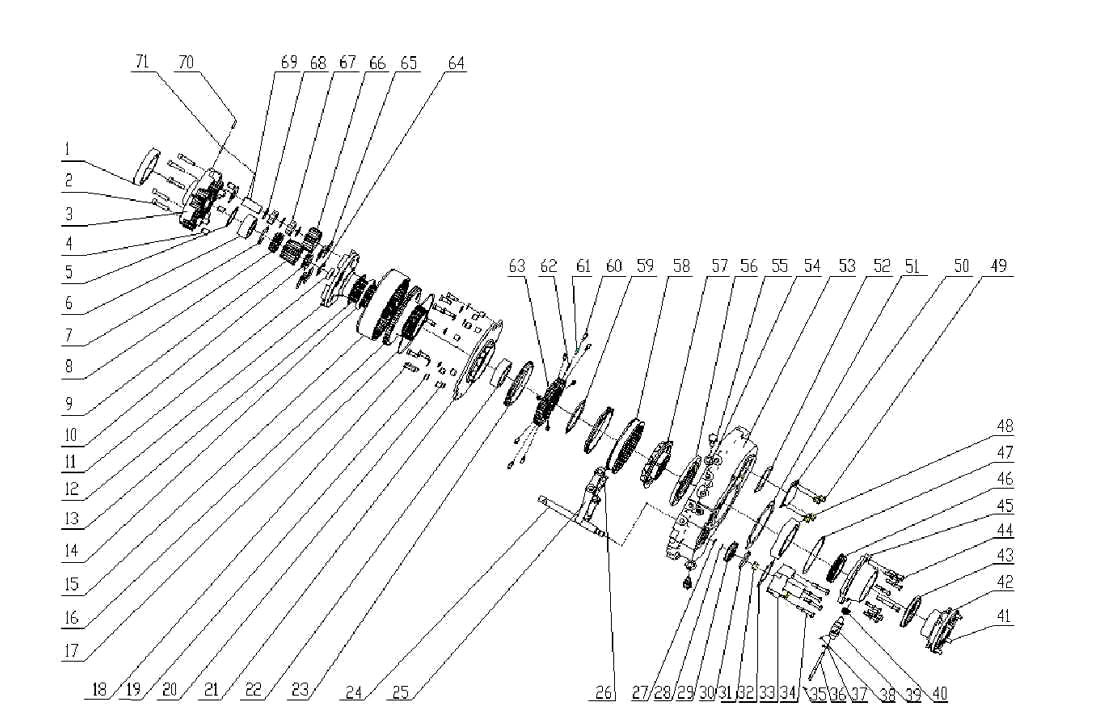

| RANGE GEAR DEPUTY BOX | |||
| SINOTRUK HW20716 TRANSMISSION | |||
| Serial | Number | Name | Quantity |
| 1 | AZ9003326020 | rolling bearing | 1 |
| 2 | AZ9003821255 | screw | 5 |
| 3 | AZ2225100002 | planetary carrier | 1 |
| 4 | WG2229100001 | sleeve | 5 |
| 5 | AZ2229100005 | gasket for sun wheel (front) | 1 |
| 6 | AZ2210100002 | spline sleeve | 1 |
| 7 | Q43875 | steel retaining ring | 1 |
| 8 | AZ2210100003 | transition sleeve | 1 |
| 9 | WG2210100001 | sun wheel | 1 |
| 10 | AZ2229100006 | gasket for sun wheel (rear) | 1 |
| 11 | AZ9003326322 | rolling bearing | 1 |
| 12 | AZ2225100001 | output shaft | 1 |
| 13 | AZ9003991125 | steel retaining ring | 1 |
| 14 | AZ9003321820 | rolling bearing | 1 |
| 15 | WG2210100005 | annular gear | 1 |
| 16 | WG2210100006 | gear carrier | 1 |
| 17 | WG2229100012 | steel retaining ring | 1 |
| 18 | Q150B1235 | hex head bolt | 9 |
| 19 | Q40112 | flat gasket | 9 |
| 20 | AZ2229100002 | sleeve | 9 |
| 21 | AZ2203100005 | low gear cone boss | 1 |
| 22 | WG2229100032 | spacer bushing | 1 |
| 23 | WG2210100009 | synchronizing ring | 2 |
| 24 | WG2214100002 | range gear shifting rod | 1 |
| 25 | WG2214100001 | range gear shifting fork | 1 |
| 26 | WG2229100042 | shifting fork block | 2 |
| 27 | AZ9003072503 | O ring | 1 |
| 28 | AZ9003071700 | O ring | 1 |
| 29 | WG2229100045 | range gear piston | 1 |
| 30 | AZ9003076900 | O ring | 1 |
| 31 | AZ9003870016 | hex nut M16×1.5 | 1 |
| 32 | WG2229100046 | paper pad | 1 |
| 33 | WG2222100003 | range gear cylinder | 1 |
| 34 | Q150B1065 | hex head bolt | 4 |
| 34 | Q40310 | spring gasket | 4 |
| 35 | AZ9003071001 | mileage sensor oil seal | 1 |
| 36 | AZ2212100002 | small gear shaft | 1 |
| 37 | AZ9003072500 | O ring | 1 |
| 38 | Q5220526 | column pin | 1 |
| 39 | WG2222100002 | mileage joint body | 1 |
| 40 | AZ2210100016 | small gear | 1 |
| 41 | Q151B1450 | hex head bolt | 4 |
| 42 | WG2210100018 | output flange Φ180 | 1 |
| 43 | AZ9003070105 | frame oil seal | 1 |
| 44 | Q150B1055 | hex head bolt | 6 |
| 44 | Q170B1055 | hex head bolt with hole | 1 |
| 44 | AZ9003801087 | hex head bolt | 1 |
| 44 | Q40310 | spring gasket | 8 |
| 45 | WG2222100001 | output shaft rear cap | 1 |
| 46 | WG2210100015 | mileage sensor worm rod | 1 |
| 47 | AZ2208100003 | adjusting gasket set | 1 |
| 48 | AZ9003326218 | rolling bearing | 1 |
| 49 | Q150B1216 | hex head bolt | 4 |
| 49 | Q40312 | spring gasket | 4 |
| 50 | AZ2229100047 | plate | 1 |
| 51 | WG2229100041 | paper pad | 1 |
| 52 | AZ2229100048 | gasket for plate | 1 |
| 53 | WG2220100002 | rear housing of gearbox | 1 |
| 54 | AZ9003990024 | elastic gasket | 2 |
| 55 | AZ2229100043 | shifting fork supporting pin | 2 |
| 56 | AZ2203100007 | guiding ring | 1 |
| 57 | AZ2203100006 | high gear cone boss | 1 |
| 58 | WG2210100008 | synchronizing sleeve | 1 |
| 59 | AZ9003991130 | elastic retaining ring | 1 |
| 60 | WG2229020001 | synchronizing push block | 9 |
| 61 | WG2229020002 | outer spring | 9 |
| 62 | WG2229020003 | inner spring | 9 |
| 63 | WG2210100007 | synchronizing seat | 1 |
| 64 | AZ9003991056 | elastic retaining ring | 1 |
| 65 | WG2229100008 | planetary wheel gasket | 10 |
| 66 | WG2210100004 | planetary wheel | 5 |
| 67 | AZ9003321118 | column bearing 11X18 | 120 |
| 68 | WG2229100007 | spacing gasket | 15 |
| 69 | WG2212100001 | planetary wheel shaft | 5 |
| 70 | Q5280630 | elastic column pin | 5 |
| 71 | Q5280430 | elastic column pin | 5 |
