48C0656 001, ENGINE HOOD AS, LIUGONG PARTS CATALOGUES

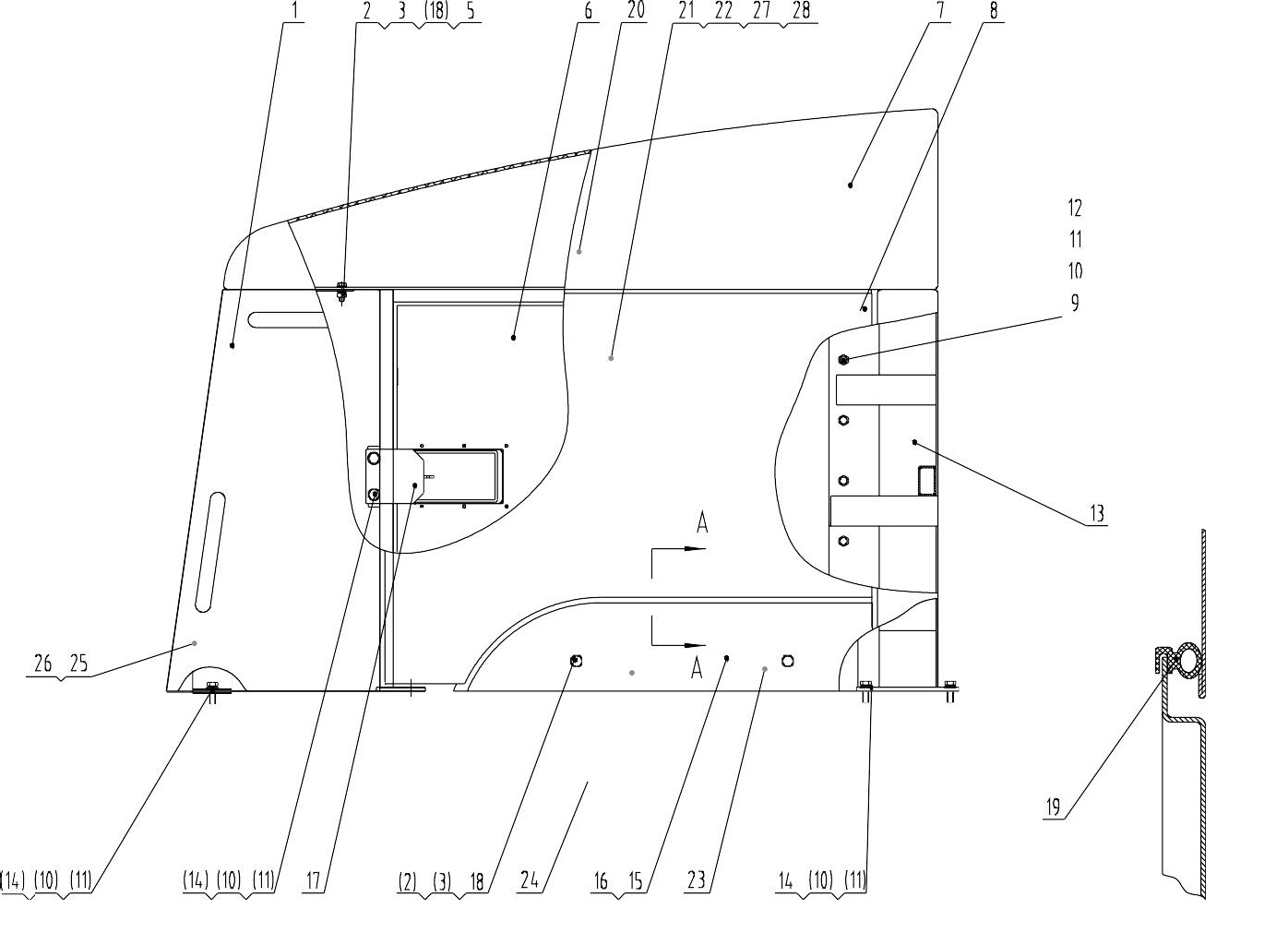

| 48C0656 001 机罩总成 ENGINE HOOD AS | |||||
|---|---|---|---|---|---|
| 件号 ITEM |
部件号 PART NO. | 版本 VER |
零件名称 | PART NAME | 数量 Q'TY |
| 1 | 48C0759 | 001 | 后罩 | COVER | 1 |
| 2 | 00B0085 | 000 | 螺栓 | BOLT | 8 |
| 3 | 06B0006 | 000 | 垫圈 | WASHER | 8 |
| 5 | 03B0021 | 000 | 螺母 | NUT | 4 |
| 6 | 42L0005 | 003 | 左上侧罩 | GUARD | 1 |
| 7 | 43D0469 | 001 | 上罩 | TOP COVER | 1 |
| 8 | 42L0006 | 003 | 右上侧罩 | GUARD | 1 |
| 9 | 00B0004 | 000 | 螺栓 | BOLT | 8 |
| 10 | 06B0002 | 000 | 垫圈 | WASHER | 20 |
| 11 | 06B0001 | 000 | 垫圈 | WASHER | 28 |
| 12 | 03B0053 | 000 | 螺母 | NUT | 8 |
| 13 | 00D3138 | 000 | 支架 | BRACKET | 1 |
| 14 | 00B0005 | 000 | 螺栓 | BOLT | 12 |
| 15 | 20H0147 | 004 | 左侧下罩 | HOOD | 1 |
| 16 | 20H0148 | 004 | 右侧下罩 | GUARD | 1 |
| 17 | 11A0318 | 001 | 锁片 | LOCK PLATE | 2 |
| 18 | 06B0086 | 000 | 垫圈 | WASHER | 12 |
| 19 | 84H0019 | 000 | 密封胶条 | SEAL | 2 |
| 20 | 85A1373 | 000 | 吸音板 | BAFFLE | 1 |
| 21 | 85A1372 | 000 | 吸音板 | BAFFLE | 1 |
| 22 | 85A1375 | 000 | 吸音板 | BAFFLE | 1 |
| 23 | 85A1365 | 001 | 吸音板 | BAFFLE | 1 |
| 24 | 85A1376 | 001 | 吸音板 | BAFFLE | 1 |
| 25 | 85A1374 | 000 | 吸音板 | BAFFLE | 1 |
| 26 | 85A1377 | 000 | 吸音板 | BAFFLE | 1 |
| 27 | 85A1370 | 000 | 吸音板 | BAFFLE | 1 |
| 28 | 85A1371 | 000 | 吸音板 | BAFFLE | 1 |
