46C1576 005, REAR FRAME WIRING, LIUGONG PARTS CATALOGUES

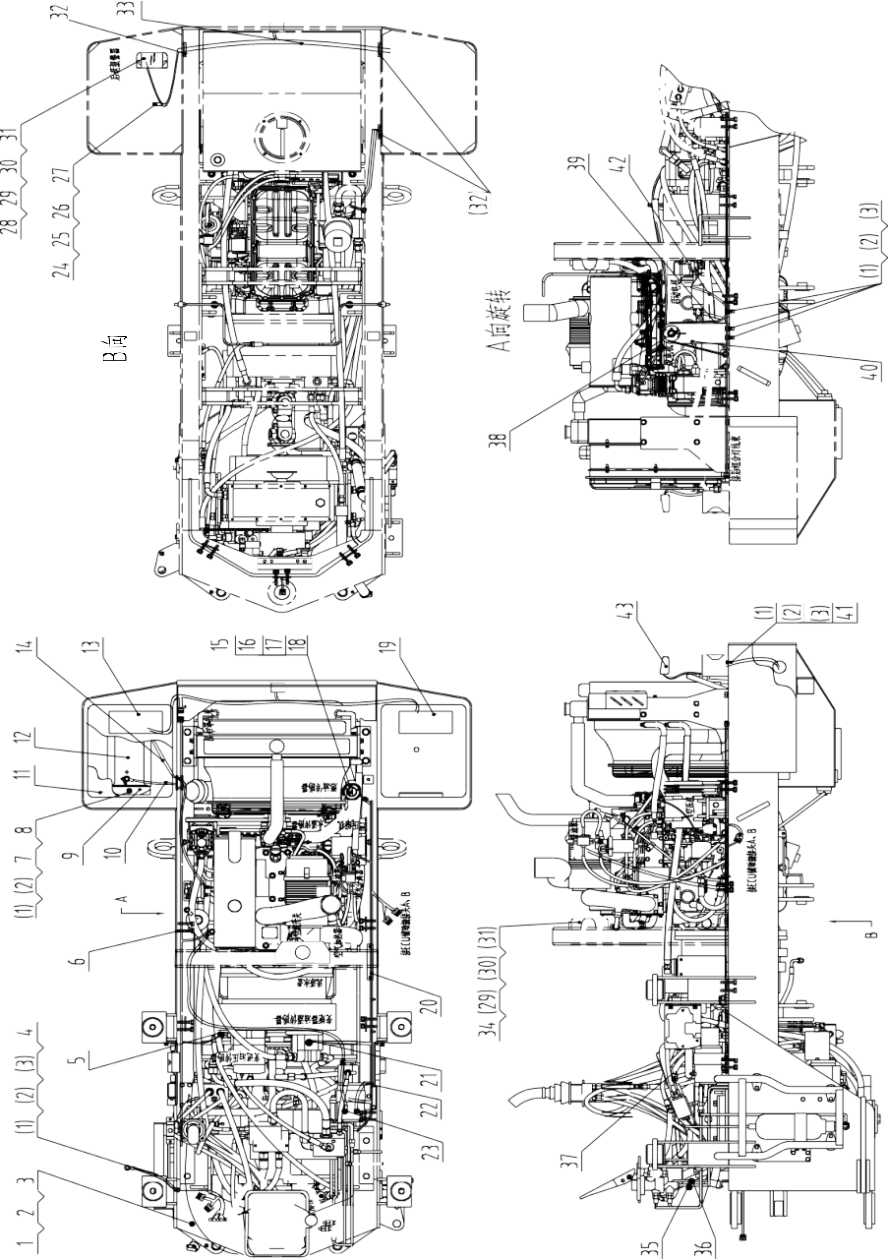

| 46C1576 005 后车架线路总成 REAR FRAME WIRING | |||||
|---|---|---|---|---|---|
| 件号 ITEM |
部件号 PART NO. | 版本 VER |
零件名称 | PART NAME | 数量 Q'TY |
| 1 | 06B0001 | 000 | 垫圈 | WASHER | 11 |
| 2 | 06B0347 | 000 | 垫圈 | WASHER | 11 |
| 3 | 00B0012 | 000 | 螺栓 | BOLT | 9 |
| 4 | 08K0016 | 000 | 车架至驾驶室电缆 | CABLE | 1 |
| 5 | 30J0007 | 000 | 压力开关 | PRESSURE SWITCH | 1 |
| 6 | 37B0004 | 001 | 尼龙扎带 | NYLON STRAP | 20 |
| 7 | 01B0398 | 000 | 螺杆 | SCREW ROD | 2 |
| 8 | 03B0053 | 000 | 螺母 | NUT | 2 |
| 9 | 00D0886 | 000 | 蓄电池固定架 | BRACKET | 1 |
| 10 | 08C1490 | 000 | 蓄电池正极至启动 电机电缆 |
CABLE | 1 |
| 11 | 84A0423 | 001 | 蓄电池下垫板 | BRACKET | 1 |
| 12 | 37B0077 | 000 | 蓄电池 | BATTERY | 1 |
| 13 | 46C2270 | 000 | 右后信号灯总成 | REAR BEACON AS-RH | 1 |
| 14 | 08C1489 | 000 | 蓄电池负极至负极 开关电缆 |
CABLE | 1 |
| 15 | 30B0310 | 000 | 燃油传感器 | FUEL SENSOR | 1 |
| 16 | 06B0066 | 000 | 垫圈 | WASHER | 5 |
| 17 | 00B0028 | 000 | 螺栓 | BOLT | 5 |
| 18 | 06B0361 | 000 | 垫圈 | WASHER | 5 |
| 19 | 46C2269 | 000 | 左后信号灯总成 | REAR BEACON AS-LH | 1 |
| 20 | 08C4823 | 000 | 后车架线束 | HARNESS | 1 |
| 21 | 30B0033 | 000 | 温度传感器 | TEMP SENSOR | 1 |
| 22 | 08C2032 | 000 | 应急转向负极电缆 | CABLE | 1 |
| 23 | 08C1998 | 000 | 启动电机至应急转 向电机电缆 |
CABLE | 1 |
| 24 | 00B0010 | 000 | 螺栓 | BOLT | 1 |
| 25 | 06B0024 | 000 | 垫圈 | WASHER | 1 |
| 26 | 06B0346 | 000 | 垫圈 | WASHER | 1 |
| 27 | 36B0465 | 000 | 线卡 | CLIP | 1 |
| 28 | 38B0059 | 001 | 后退报警器 | BACKUP ALARM | 1 |
| 29 | 06B0348 | 000 | 垫圈 | WASHER | 2 |
| 30 | 06B0005 | 000 | 垫圈 | WASHER | 2 |
| 31 | 00B0007 | 000 | 螺栓 | BOLT | 2 |
| 32 | 83A0216 | 001 | 护孔圈 | GROMMET | 3 |
| 33 | 08C2607 | 001 | 线束 | HARNESS | 1 |
| 34 | 37B0182 | 000 | 清洗器 | WASHER | 1 |
| 35 | 34B0538 | 000 | 压力开关 | PRESSURE SWITCH | 1 |
| 36 | 34B0540 | 000 | 制动灯开关 | BRAKE LIGHT SWITCH |
1 |
| 37 | 34B0539 | 000 | 油压报警开关 | OIL PRESSURE ALERT SWITCH |
1 |
| 38 | 34B0087 | 000 | 负极开关 | DISCONNECT SWITCH |
1 |
| 39 | 08K0006 | 000 | 车架至发动机连接 电缆 |
CABLE | 1 |
| 40 | 22A1430 | 000 | 负极开关安装板 | MOUNTING PLATE |
1 |
| 41 | 08C0718 | 001 | 组合信号灯线束 | HARNESS | 2 |
| 42 | 08C1520 | 000 | 启动机至车架电缆 | CABLE | 1 |
| 43 | 32B0182 | 000 | 牌照灯 | LICENSE LIGHT | 1 |
