10E0158 003, STEERING HYDRAULIC SYSTEM, LIUGONG PARTS CATALOGEUS

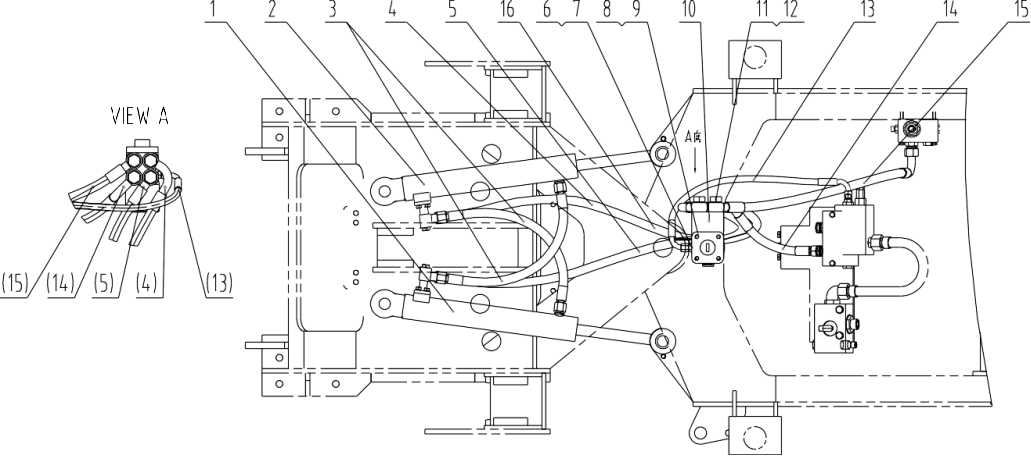

| 10E0158 003 转向液压系统 STEERING HYDRAULIC SYSTEM | ||||||
|---|---|---|---|---|---|---|
| 件号 ITEM |
部件号 PART NO. | 版本 VER |
零件名称 | PART NAME | 数量 Q'TY |
|
| 1 | 10C0649 | 000 | 左转向油缸总成 | STEERING CYLINDER-LH AS | 1 | |
| 2 | 10C0650 | 000 | 右转向油缸总成 | STEERING CYLINDER-RH AS |
1 | |
| 3 | 06K0026 | 000 | 软管总成 | HOSE AS | 2 | |
| 4 | 06C3251 | 000 | 软管总成 | HOSE AS | 1 | |
| 5 | 06C3252 | 000 | 软管总成 | HOSE AS | 1 | |
| 6 | 12B0380 | 000 | O 形密封圈 | O-RING | 1 | |
| 7 | 00H0065 | 000 | 接头 | CONNECTOR | 1 | |
| 8 | 00B0012 | 000 | 螺栓 | BOLT | 4 | |
| 9 | 06B0347 | 000 | 垫圈 | WASHER | 4 | |
| 10 | 12C2487 | 000 | 转向器 | METERING PUMP | 1 | |
| 11 | 80A0297 | 000 | 绞接螺栓 | BOLT | 4 | |
| 12 | 06B0119 | 000 | 垫圈 | WASHER | 9 | |
| 13 | 05C1473 | 000 | 软管总成 | HOSE AS | 1 | |
| 14 | 06C3249 | 000 | 软管总成 | HOSE AS | 1 | |
| 15 | 06C3250 | 000 | 软管总成 | HOSE AS | 1 | |
