10K0006 001, STEERING CYLINDER, LIUGONG PARTS CATLOGUES

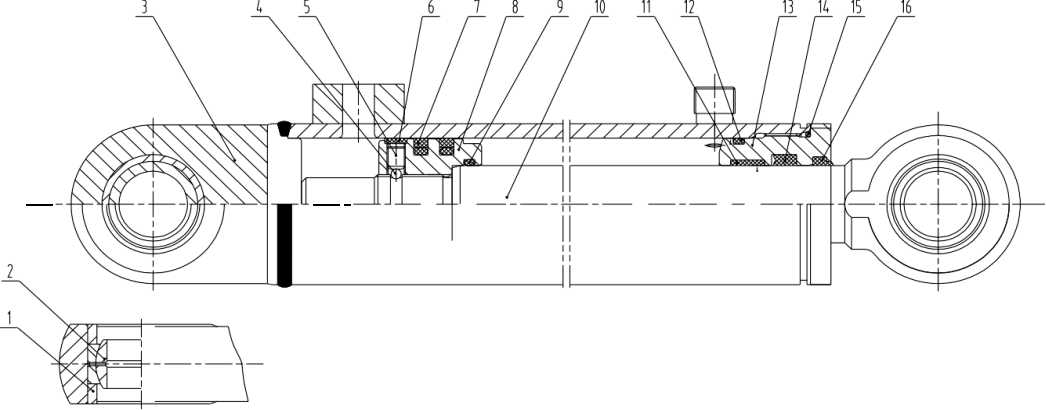

| 10K0006 001 转向油缸 STEERING CYLINDER | |||||
|---|---|---|---|---|---|
| 件号 ITEM |
部件号 PART NO. | 版本 VER |
零件名称 | PART NAME | 数量 Q'TY |
| 1 | 76H0003 | 001 | 挡块 | BLOCK | 8 |
| 2 | 25K0004 | 000 | 关节轴承 GE30ES | KNUCKLE BEARING | 4 |
| 3 | 13L0009 | 000 | 缸体 | CYLINDER BODY | 2 |
| 4 | 20J0001 | 000 | 钢球 | STEEL BALL | 2 |
| 5 | 04B0246 | 000 | 螺钉 | SCREW | 2 |
| 6 | 80H0014 | 001 | 支承环 | SUPPORT RING | 2 |
| 7 | 34K0021 | 001 | 孔用组合封 | SEAL RING | 4 |
| 8 | 50H0005 | 001 | 活塞 | PISTON | 2 |
| 9 | 12J0012 | 000 | O 形圈 | O-RING | 2 |
| 10 | 50A0137 | 001 | 活塞杆 | PISTON ROD | 2 |
| 11 | 80H0015 | 001 | 支承环 | SUPPORT RING | 2 |
| 12 | 12B0361 | 000 | O 形圈 | O-RING | 2 |
| 13 | 53H0018 | 001 | 缸盖 | CYLINDER HEAD | 2 |
| 14 | 34K0024 | 001 | Y 形密封圈 | Y-SEAL | 2 |
| 15 | 12J0011 | 000 | O 形圈 | O-RING | 2 |
| 16 | 34K0022 | 001 | 防尘圈 | DUST RING | 2 |
