11E0371 009, HYDRAULIC SYSTEM, LIUGONG PARTS CATLOGUES

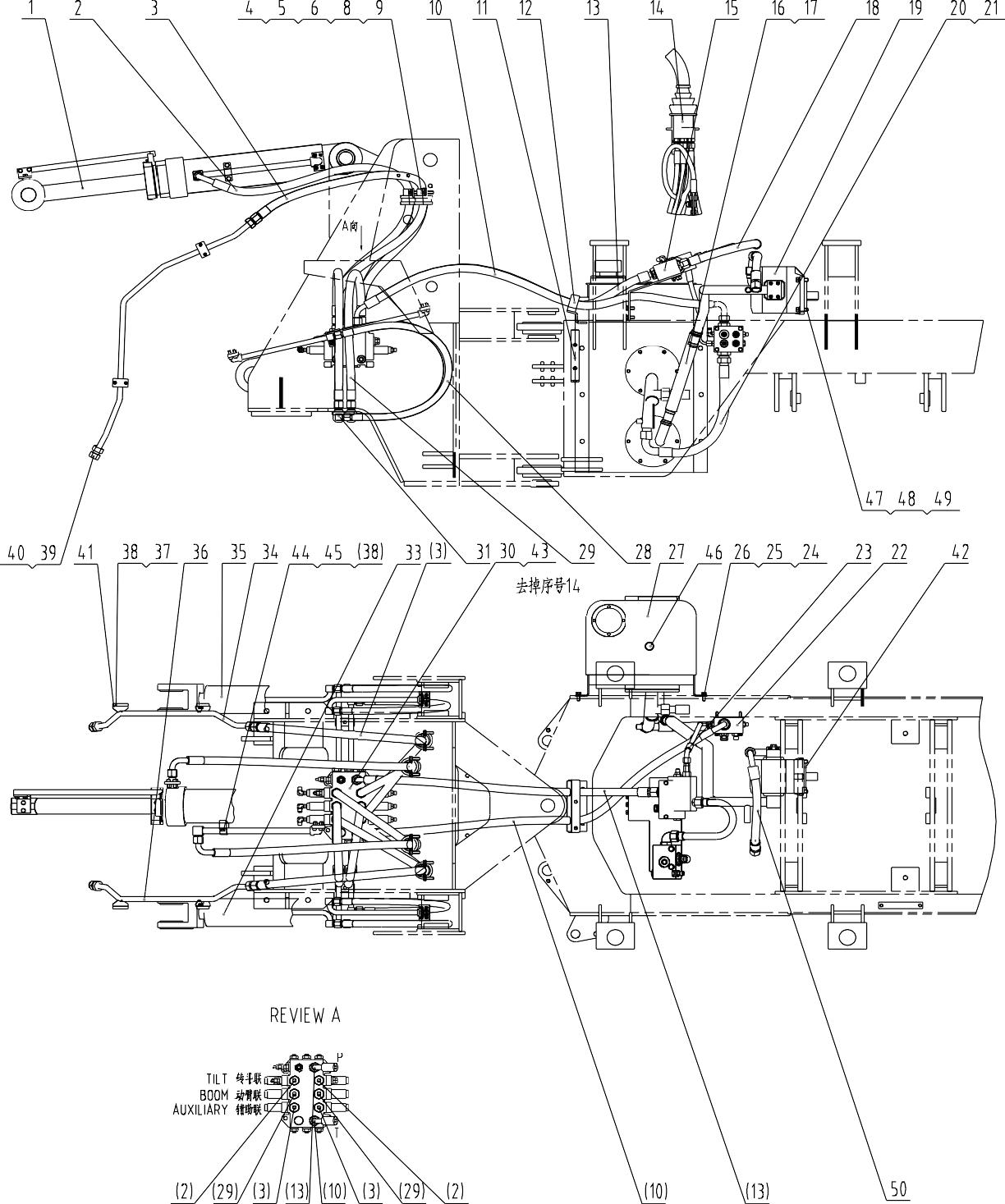

| 11E0371 009 工作液压系统 HYDRAULIC SYSTEM | |||||
|---|---|---|---|---|---|
| 件号 ITEM |
部件号 PART NO. | 版本 VER |
零件名称 | PART NAME | 数量 Q'TY |
| 1 | 10C0753 | 000 | 转斗油缸 | BUCKET TILTING CYLINDER |
1 |
| 2 | 06C3769 | 000 | 软管总成 | HOSE AS | 2 |
| 3 | 06C4079 | 000 | 软管总成 | HOSE AS | 2 |
| 4 | 19A0425 | 000 | 管夹 | CLAMP | 4 |
| 5 | 00B0005 | 000 | 螺栓 | BOLT | 8 |
| 6 | 06B0347 | 000 | 垫圈 | WASHER | 8 |
| 8 | 83H0011 | 000 | 垫 | SHIM | 4 |
| 9 | 03B0053 | 000 | 螺母 | NUT | 8 |
| 10 | 06C3244 | 000 | 软管总成 | HOSE AS | 1 |
| 11 | 09C1160 | 000 | 管夹 | CLAMP | 1 |
| 12 | 09C0708 | 000 | 管夹总成 | CLAMP | 1 |
| 13 | 06C2398 | 000 | 软管总成 | HOSE AS | 1 |
| 14 | 00C0838 | 005 | 先导控制油路 | PILOT CONTROL LINES | 1 |
| 15 | 12C1255 | 004 | 优先阀安装总成 | PRIORITY VALVE AS |
1 |
| 16 | 30A0317 | 000 | 吸油软管 | SUCTION HOSE | 1 |
| 17 | 15B0005 | 000 | 双钢丝式环箍 | CLAMP | 2 |
| 18 | 06C3716 | 000 | 软管总成 | HOSE AS | 1 |
| 19 | 11C1434 | 000 | 油泵总成 | PUMP AS | 1 |
| 20 | 06C3245 | 000 | 软管总成 | HOSE AS | 1 |
| 21 | 12B0224 | 000 | O 形圈 | O-RING | 1 |
| 22 | 12C1253 | 002 | 回油阀块总成 | RETURN VALVE AS | 1 |
| 23 | 05C1546 | 000 | 软管总成 | HOSE AS | 1 |
| 24 | 00B0038 | 000 | 螺栓 | BOLT | 6 |
| 25 | 06B0009 | 000 | 垫圈 | WASHER | 6 |
| 26 | 06B0350 | 000 | 垫圈 | WASHER | 6 |
| 27 | 21C0244 | 000 | 液压油箱 | HYDRAULIC OIL TANK | 1 |
| 28 | 06C2396 | 000 | 软管总成 | HOSE AS | 4 |
| 29 | 06C2394 | 000 | 软管总成 | HOSE AS | 2 |
| 30 | 12C1327 | 000 | 多路阀总成 | CONTROL VALVE AS | 1 |
| 31 | 00C0854 | 000 | 钢管总成 | TUBE AS | 1 |
| 33 | 10C0646 | 000 | 左动臂油缸总成 | BOOM CYLINDER AS-LH | 1 |
| 34 | 10D2785 | 000 | 钢管总成 | TUBE AS | 1 |
| 35 | 10C0647 | 000 | 右动臂油缸总成 | BOOM CYLINDER AS-RH | 1 |
| 36 | 10D2784 | 000 | 钢管总成 | TUBE AS | 1 |
| 37 | 00B0026 | 000 | 螺栓 | BOLT | 8 |
| 38 | 06B0348 | 000 | 垫圈 | WASHER | 10 |
| 39 | 05A0287 | 000 | 堵头 | PLUG | 2 |
| 40 | 03B0649 | 000 | 螺母 | NUT | 2 |
| 41 | 14A1750 | 000 | 螺母块 | NUT BLOCK | 4 |
| 42 | 82A0765 | 000 | 密封垫 | GASKET | 1 |
| 43 | 12C1786 | 005 | 多路阀总成 | CONTROL VALVE AS | 1 |
| 44 | 10A4599 | 000 | 管夹 | CLAMP | 2 |
| 45 | 00B0075 | 000 | 螺栓 | BOLT | 2 |
| 46 | 84A1866 | 000 | 堵头 | PLUG | 1 |
| 47 | 00B0035 | 000 | 螺栓 | BOLT | 4 |
| 48 | 06B0007 | 000 | 垫圈 | WASHER | 4 |
| 49 | 06B0349 | 000 | 垫圈 | WASHER | 4 |
| 50 | 06C9619 | 000 | 软管总成 | HOSE AS | 1 |
