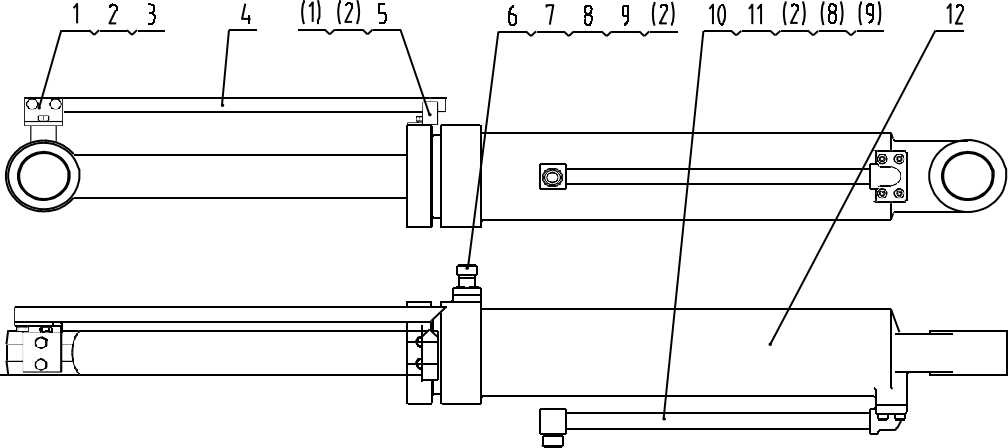

10C0753 000, BUCKET TILTING CYLINDER, LIUGONG PARTS CATALOGUES
| 10C0753 000 转斗油缸 BUCKET TILTING CYLINDER | |||||
|---|---|---|---|---|---|
| 件号 ITEM |
部件号 PART NO. | 版本 VER |
零件名称 | PART NAME | 数量 Q'TY |
| 1 | 00B0075 | 000 | 螺栓 | BOLT | 5 |
| 2 | 06B0348 | 000 | 垫圈 | WASHER | 13 |
| 3 | 27H0010 | 001 | 固定座 | RETAINER | 1 |
| 4 | 16A0626 | 001 | 指示杆 | INDICATING ROD | 1 |
| 5 | 20A0154 | 002 | 指针 | POINTER | 1 |
| 6 | 10L0029 | 000 | 接头总成 | CONNECTOR | 1 |
| 7 | 12B0051 | 000 | O 形圈 | O-RING | 1 |
| 8 | 04B0049 | 000 | 螺钉 | SCREW | 8 |
| 9 | 12B0289 | 000 | O 形圈 | O-RING | 2 |
| 10 | 10L0026 | 001 | 钢管总成 | TUBE AS | 1 |
| 11 | 12B0114 | 000 | O 形圈 | O-RING | 1 |
| 12 | 10K0012 | 002 | 转斗油缸 | BUCKET TILTING CYLINDER | 1 |
