10K0012 002, BUCKET TILTING CYLINDER, LIUGONG PARTS CATALOGEUS

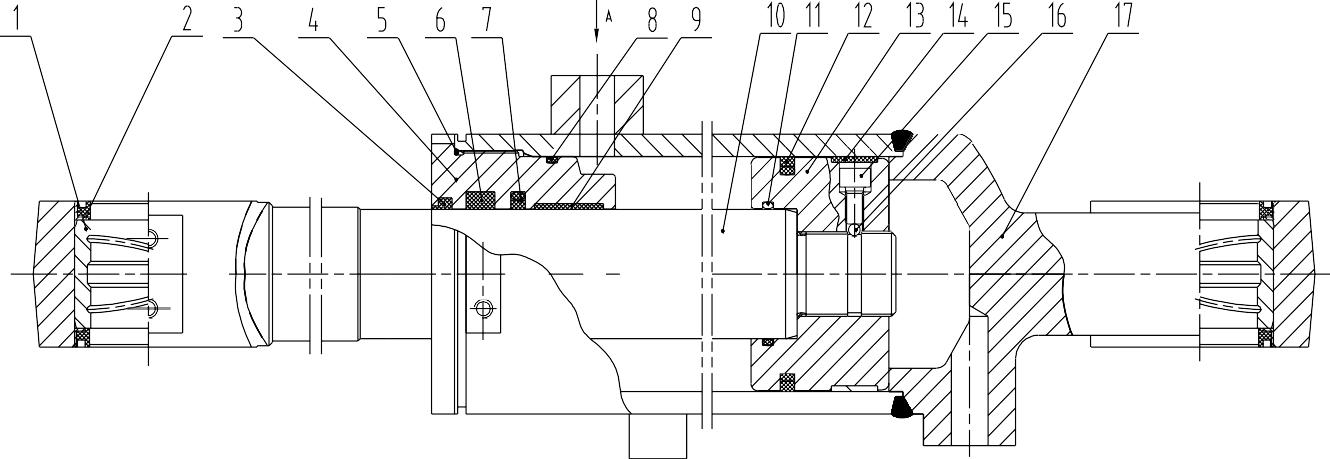

| 10K0012 002 转斗油缸 BUCKET TILTING CYLINDER | |||||
|---|---|---|---|---|---|
| 件号 ITEM |
部件号 PART NO. | 版本 VER |
零件名称 | PART NAME | 数量 Q'TY |
| 1 | 55A0421 | 000 | 衬套 | BUSHING | 2 |
| 2 | 34C0034 | 001 | 密封圈 | SEAL RING | 4 |
| 3 | 34K0023 | 000 | 防尘圈 | DUST RING | 1 |
| 4 | 53H0019 | 000 | 缸盖 | CYLINDER HEAD | 1 |
| 5 | 12J0010 | 000 | O 形圈 | O-RING | 1 |
| 6 | 34K0025 | 000 | Y 形密封圈 | Y-SEAL | 1 |
| 7 | 34K0026 | 001 | 轴用组合封 | SEAL | 1 |
| 8 | 12B0060 | 000 | O 形圈 | O-RING | 1 |
| 9 | 80H0016 | 000 | 支承环 | SUPPORT RING | 1 |
| 10 | 14L0006 | 000 | 活塞杆 | PISTON ROD | 1 |
| 11 | 12B0361 | 000 | O 形圈 | O-RING | 1 |
| 12 | 34K0027 | 001 | 孔用组合封 | SEAL RING | 1 |
| 13 | 50H0006 | 000 | 活塞 | PISTON | 1 |
| 14 | 80H0017 | 000 | 支承环 | SUPPORT RING | 1 |
| 15 | 04B0263 | 000 | 螺钉 | SCREW | 1 |
| 16 | 20B0035 | 000 | 钢球 | STEEL BALL | 1 |
| 17 | 13L0010 | 001 | 缸体 | CYLINDER BODY | 1 |
