12C1255 004，PRIORITY VALVE AS, LIUGONG PARTS CATALOGUES

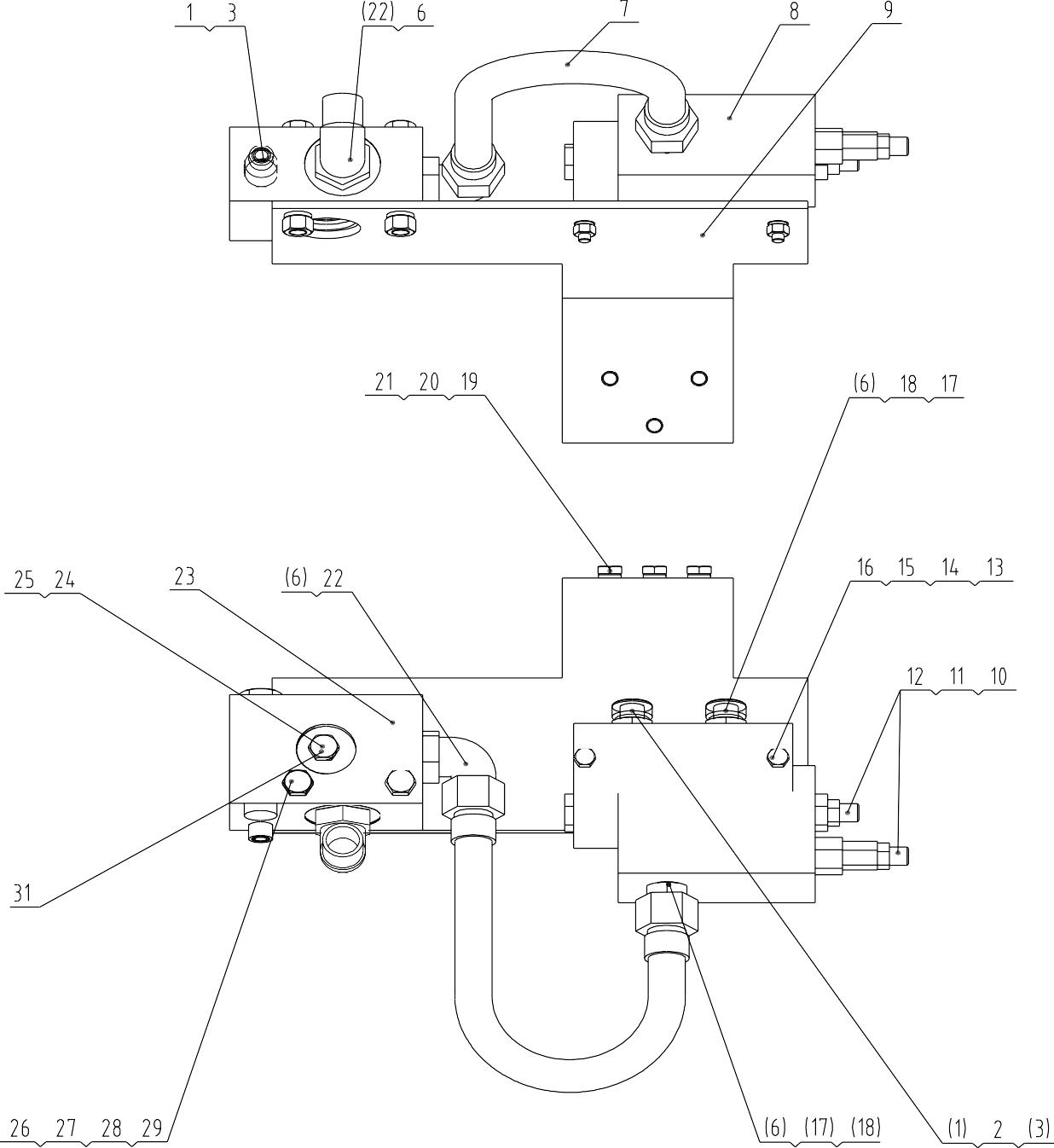

| 12C1255 004 优先阀安装总成 PRIORITY VALVE AS | |||||
|---|---|---|---|---|---|
| 件号 ITEM |
部件号 PART NO. | 版本 VER |
零件名称 | PART NAME | 数量 Q'TY |
| 1 | 30C1104 | 000 | 接头 | CONNECTOR | 2 |
| 2 | 12B0339 | 000 | O 形密封圈 | O-RING | 1 |
| 3 | 12B0370 | 000 | O 形圈 | O-RING | 2 |
| 6 | 12B0021 | 000 | O 形圈 | O-RING | 3 |
| 7 | 10D2537 | 000 | 钢管总成 | PIPE AS | 1 |
| 8 | 12K0007 | 000 | 优先阀 | PRIORITY VALVE | 1 |
| 9 | 22A1854 | 000 | 弯板 | PLATE | 1 |
| 10 | 12B0284 | 000 | O 形圈 | O-RING | 2 |
| 11 | 00H0065 | 000 | 接头 | CONNECTOR | 2 |
| 12 | 12B0380 | 000 | O 形密封圈 | O-RING | 2 |
| 13 | 01B0228 | 000 | 螺栓 | BOLT | 2 |
| 14 | 06B0348 | 000 | 垫圈 | WASHER | 2 |
| 15 | 06B0086 | 000 | 垫圈 | WASHER | 2 |
| 16 | 03B0021 | 000 | 螺母 | NUT | 2 |
| 17 | 12B0379 | 000 | O 形圈 | O-RING | 2 |
| 18 | 00H0066 | 000 | 接头 | CONNECTOR | 2 |
| 19 | 00B0012 | 000 | 螺栓 | BOLT | 3 |
| 20 | 06B0347 | 000 | 垫圈 | WASHER | 3 |
| 21 | 06B0001 | 000 | 垫圈 | WASHER | 3 |
| 22 | 31C0351 | 000 | 可调接头 | CONNECTOR | 2 |
| 23 | 12C0570 | 002 | 单向阀组 | CHECK VALVE GP | 1 |
| 24 | 03B0093 | 002 | 螺塞 | PLUG | 1 |
| 25 | 12B0351 | 000 | O 形密封圈 | O-RING | 1 |
| 26 | 01B0142 | 000 | 螺栓 | BOLT | 2 |
| 27 | 06B0059 | 000 | 垫圈 | WASHER | 2 |
| 28 | 06B0349 | 000 | 垫圈 | WASHER | 2 |
| 29 | 03B0003 | 000 | 螺母 | NUT | 2 |
| 31 | 10A2497 | 001 | 垫圈 | WASHER | 1 |
