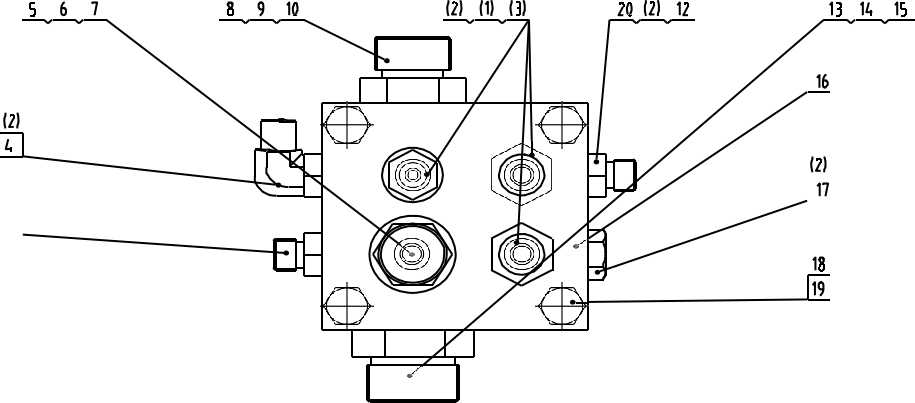

12C1253 002, RETURN VALVE AS, LIUGONG PARTS CATALOGUES
| 12C1253 002 回油阀块总成 RETURN VALVE AS | ||||||
|---|---|---|---|---|---|---|
| 件号 ITEM |
部件号 PART NO. | 版本 VER |
零件名称 | PART NAME | 数量 Q'TY |
|
| 1 | 00A0228 | 000 | 接头 | CONNECTOR | 4 | |
| 2 | 12B0351 | 000 | O 形密封圈 | O-RING | 7 | |
| 3 | 12B0284 | 000 | O 形圈 | O-RING | 5 | |
| 4 | 31C0031 | 000 | 直角接头 | CONNECTOR | 1 | |
| 5 | 00A0217 | 001 | 管接头 | CONNECTOR | 1 | |
| 6 | 12B0291 | 000 | O 形圈 | O-RING | 1 | |
| 7 | 12B0370 | 000 | O 形圈 | O-RING | 1 | |
| 8 | 00H0046 | 000 | 接头 | CONNECTOR | 1 | |
| 9 | 12B0198 | 000 | O 形圈 | O-RING | 1 | |
| 10 | 12B0021 | 000 | O 形圈 | O-RING | 1 | |
| 12 | 12B0285 | 000 | O 形圈 | O-RING | 1 | |
| 13 | 00A1727 | 000 | 接头 | CONNECTOR | 1 | |
| 14 | 12B0299 | 000 | O 形密封圈 | O-RING | 1 | |
| 15 | 12B0224 | 000 | O 形圈 | O-RING | 1 | |
| 16 | 78A0230 | 000 | 回油阀块 | RETURN VALVE | 1 | |
| 17 | 03B0093 | 002 | 螺塞 | PLUG | 1 | |
| 18 | 00B0191 | 000 | 螺栓 | BOLT | 4 | |
| 19 | 06B0348 | 000 | 垫圈 | WASHER | 4 | |
| 20 | 00A3164 | 000 | 接头 | CONNECTOR | 1 | |
