21C0244 000, HYDRAULIC OIL TANK, LIUGONG PARTS CATALOGUES

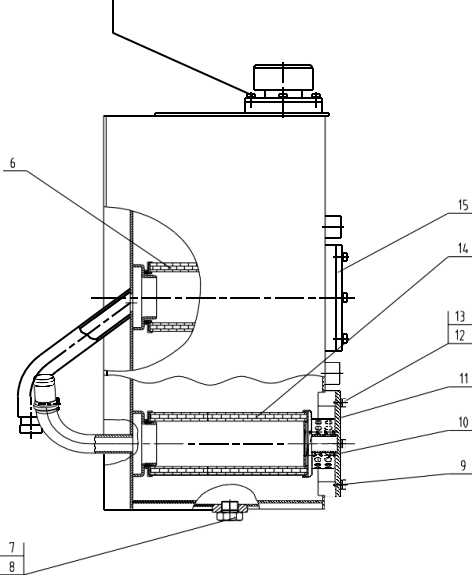

| 21C0244 000 液压油箱 HYDRAULIC OIL TANK | ||||||
|---|---|---|---|---|---|---|
| 件号 ITEM |
部件号 PART NO. | 版本 VER |
零件名称 | PART NAME | 数量 Q'TY |
|
| 1 | 16C0003 | 001 | 加油透气总成 | BREATHER AS | 1 | |
| 2 | 04D0645 | 001 | 箱体 | TANK HOUSING | 1 | |
| 3 | 21C0081 | 000 | 圆形液位计 | DIPSTICK | 1 | |
| 4 | 00B0007 | 000 | 螺栓 | BOLT | 4 | |
| 5 | 06B0006 | 000 | 垫圈 | WASHER | 4 | |
| 6 | 53C0089 | 000 | 回油滤油器 | RETURN OIL FILTER | 1 | |
| 7 | 05A0008 | 001 | 堵头 | PLUG | 1 | |
| 8 | 12B0299 | 000 | O 形密封圈 | O-RING | 1 | |
| 9 | 12B0375 | 000 | O 形圈 | O-RING | 2 | |
| 10 | 75A0057 | 000 | 弹簧 | SPRING | 1 | |
| 11 | 02D1635 | 000 | 吸油法兰支座 | FLANGE SUPPORT | 1 | |
| 12 | 00B0012 | 000 | 螺栓 | BOLT | 12 | |
| 13 | 06B0347 | 000 | 垫圈 | WASHER | 12 | |
| 14 | 53C0090 | 000 | 吸油滤油器 | SUCTION STRAINER | 1 | |
| 15 | 02D1636 | 000 | 回油法兰支座 | SUPPORT | 1 | |
