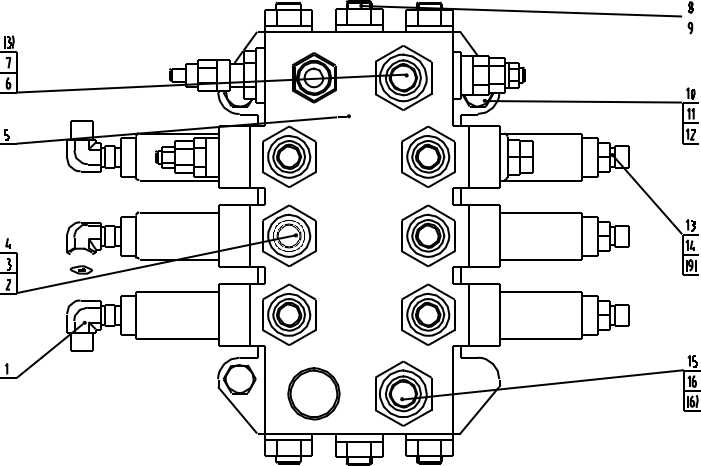

12C1327 000, CONTROL VALVE AS, LIUGONGP ARTS CATALOGUES
| 12C1327 000 多路阀总成 CONTROL VALVE AS | ||||||
|---|---|---|---|---|---|---|
| 件号 ITEM |
部件号 PART NO. | 版本 VER |
零件名称 | PART NAME | 数量 Q'TY |
|
| 1 | 31C0305 | 000 | 直角接头 | CONNECTOR | 3 | |
| 2 | 00A1934 | 000 | 接头 | CONNECTOR | 6 | |
| 3 | 06B0055 | 000 | 垫圈 | WASHER | 6 | |
| 4 | 12B0289 | 000 | O 形圈 | O-RING | 6 | |
| 5 | 12C0875 | 000 | 多路阀 | CONTROL VALVE | 1 | |
| 6 | 12B0021 | 000 | O 形圈 | O-RING | 2 | |
| 7 | 00A2729 | 000 | 接头 | CONNECTOR | 1 | |
| 8 | 05A0320 | 000 | 堵头 | PLUG | 1 | |
| 9 | 06B0117 | 000 | 垫圈 | WASHER | 4 | |
| 10 | 00B0087 | 000 | 螺栓 | BOLT | 3 | |
| 11 | 06B0349 | 000 | 垫圈 | WASHER | 3 | |
| 12 | 03B0003 | 000 | 螺母 | NUT | 3 | |
| 13 | 12B0284 | 000 | O 形圈 | O-RING | 3 | |
| 14 | 00A1728 | 000 | 接头 | CONNECTOR | 3 | |
| 15 | 00A1935 | 000 | 接头 | CONNECTOR | 1 | |
| 16 | 06B0054 | 000 | 垫圈 | WASHER | 1 | |
