10K0013 001, BOOM CYLINDER, LIUGONG PARTS CATALOGUES

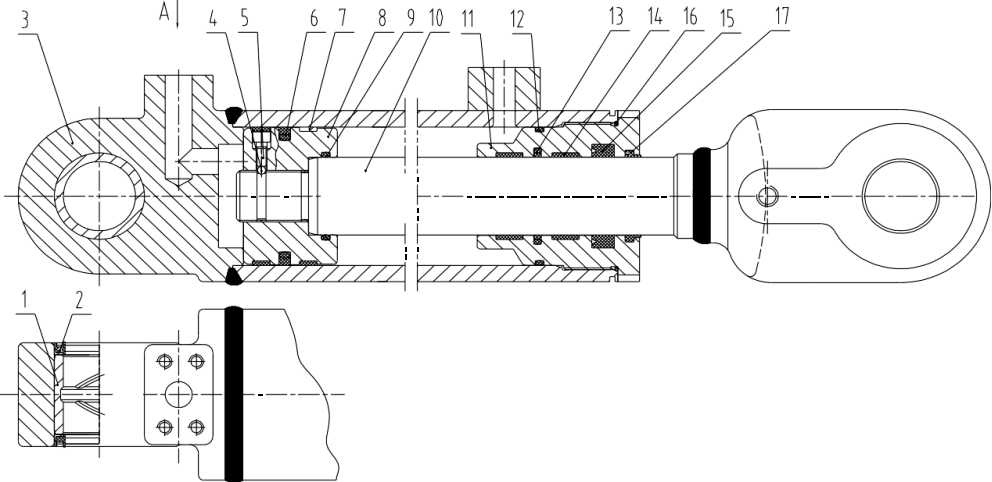

| 10K0013 001 动臂油缸 BOOM CYLINDER | ||||||
|---|---|---|---|---|---|---|
| 件号 ITEM |
部件号 PART NO. | 版本 VER |
零件名称 | PART NAME | 数量 Q'TY |
|
| 1 | 55A0288 | 000 | 衬套 | BUSHING | 2 | |
| 2 | 34C0052 | 001 | 防尘圈 | DUST RING | 4 | |
| 3 | 13L0011 | 000 | 缸体 | CYLINDER BODY | 2 | |
| 4 | 20J0001 | 000 | 钢球 | STEEL BALL | 2 | |
| 5 | 04J0003 | 000 | 螺钉 | SCREW | 2 | |
| 6 | 34K0028 | 000 | 孔用组合封 | SEAL RING | 2 | |
| 7 | 80H0013 | 000 | 支承环 | SUPPORT RING | 4 | |
| 8 | 50H0007 | 000 | 活塞 | PISTON | 2 | |
| 9 | 12B0062 | 000 | O 形圈 | O-RING | 2 | |
| 10 | 14L0007 | 000 | 活塞杆 | PISTON ROD | 2 | |
| 11 | 53H0020 | 000 | 缸盖 | CYLINDER HEAD | 2 | |
| 12 | 12B0117 | 000 | O 形圈 | O-RING | 2 | |
| 13 | 34K0029 | 000 | 轴用组合封 | SEAL | 2 | |
| 14 | 80H0018 | 000 | 支承环 | SUPPORT RING | 4 | |
| 15 | 34K0030 | 000 | Y 形密封圈 | Y-SEAL | 2 | |
| 16 | 12J0009 | 000 | O 形圈 | O-RING | 2 | |
| 17 | 34K0031 | 000 | 防尘圈 | DUST RING | 2 | |
