15E0401 002, QUICKER COUPLE CYLINDER LINES, LIUGONG PARTS CATALOGUES

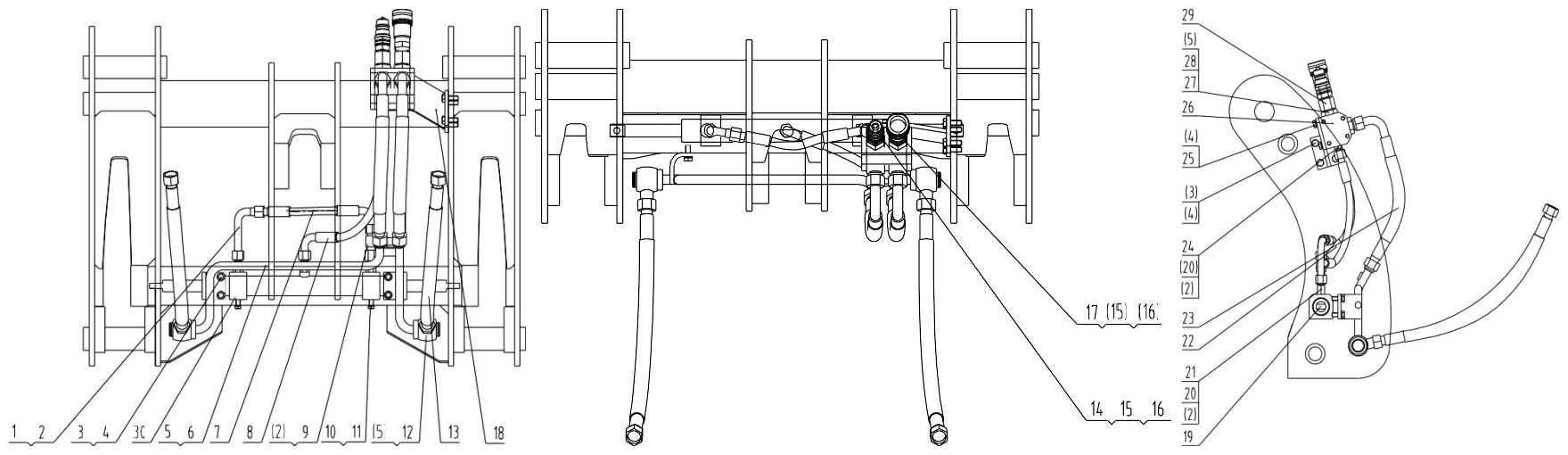

| 15E0401 002 快换油缸管路 QUICKER COUPLE CYLINDER LINES | |||||
|---|---|---|---|---|---|
| 件号 ITEM |
部件号 PART NO. | 版本 VER |
零件名称 | PART NAME | 数量 Q'TY |
| 1 | 10D2727 | 000 | 钢管总成 | PIPE AS | 1 |
| 2 | 12B0285 | 000 | O 形圈 | O-RING | 8 |
| 3 | 00B0012 | 000 | 螺栓 | BOLT | 8 |
| 4 | 06B0347 | 000 | 垫圈 | WASHER | 10 |
| 5 | 12B0289 | 000 | O 形圈 | O-RING | 8 |
| 6 | 10D2974 | 000 | 钢管总成 | TUBE AS | 1 |
| 7 | 06C3708 | 002 | 软管总成 | HOSE AS | 1 |
| 8 | 06C3707 | 001 | 软管总成 | HOSE AS | 1 |
| 9 | 32C0335 | 000 | 三通接头 | TEE | 1 |
| 10 | 06B0348 | 000 | 垫圈 | WASHER | 4 |
| 11 | 00B0085 | 000 | 螺栓 | BOLT | 4 |
| 12 | 31C0401 | 000 | 接头 | CONNECTOR | 2 |
| 13 | 06C4135 | 000 | 软管总成 | HOSE AS | 2 |
| 14 | 30C0063 | 002 | 快换接头 | COUPLER CONNECTOR | 1 |
| 15 | 07J0002 | 001 | 挡圈 | SNAP RING | 2 |
| 16 | 12B0491 | 001 | O 形圈 | O-RING | 2 |
| 17 | 30C0064 | 002 | 快换接头 | COUPLER CONNECTOR | 1 |
| 18 | 00D2830 | 000 | 安装板 | MOUNTING PLATE |
1 |
| 19 | 10C0631 | 000 | 快换油缸 | QUICK COUPLER CYLINDER |
1 |
| 20 | 12B0351 | 000 | O 形密封圈 | O-RING | 5 |
| 21 | 00A2418 | 000 | 接头 | CONNECTOR | 3 |
| 22 | 06C3706 | 001 | 软管总成 | HOSE AS | 1 |
| 23 | 06C3709 | 001 | 软管总成 | HOSE AS | 2 |
| 24 | 00A2322 | 000 | 接头 | CONNECTOR | 2 |
| 25 | 00B0019 | 000 | 螺栓 | BOLT | 2 |
| 26 | 12C0685 | 010 | 快换阀 | DIVERTER VALVE | 1 |
| 27 | 12B0498 | 001 | O 形圈 | O-RING | 4 |
| 28 | 00A1582 | 001 | 接头 | CONNECTOR | 4 |
| 29 | 30C0721 | 000 | 接头 | CONNECTOR | 2 |
| 30 | 28C0113 | 000 | 调整垫片 | ADJUSTING GASKET | 2 |
