12C0685 010, DIVERTER VALVE, LIUGONG PARTS CATALOGUES

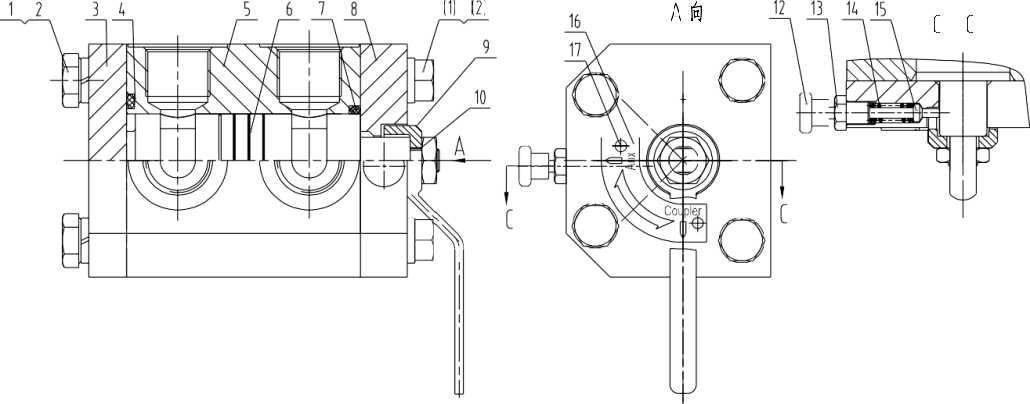

| 12C0685 010 快换阀 DIVERTER VALVE | |||||
|---|---|---|---|---|---|
| 件号 ITEM |
部件号 PART NO. | 版本 VER |
零件名称 | PART NAME | 数量 Q'TY |
| 1 | 06B0006 | 000 | 垫圈 | WASHER | 8 |
| 2 | 00B0020 | 000 | 螺栓 | BOLT | 8 |
| 3 | 14A3289 | 002 | 盖板 | COVER | 1 |
| 4 | 12B0287 | 000 | O 形圈 | O-RING | 1 |
| 5 | 78A0146 | 004 | 阀体 | VALVE BODY | 1 |
| 6 | 65A0088 | 005 | 阀芯 | SPOOL | 1 |
| 7 | 12B0300 | 000 | O 形圈 | O-RING | 1 |
| 8 | 14A3288 | 003 | 盖板 | COVER | 1 |
| 9 | 12D0216 | 001 | 操纵手柄 | CONTROL LEVER | 1 |
| 10 | 03B0151 | 000 | 螺母 | NUT | 1 |
| 12 | 55A2417 | 000 | 手轮 | HAND WHEEL | 1 |
| 13 | 05A0497 | 001 | 螺塞 | PLUG | 1 |
| 14 | 75A0387 | 000 | 回位弹簧 | RETURN SPRING | 1 |
| 15 | 65A0300 | 001 | 阀杆 | VALVE ROD | 1 |
| 16 | 74A5667 | 000 | 铭牌 | NAMEPLATE | 1 |
| 17 | 09B0002 | 000 | 铆钉 | RIVET | 2 |
