20C0945 000, COOLING SYSTEM, LIUGONG PARTS CATALOGUE

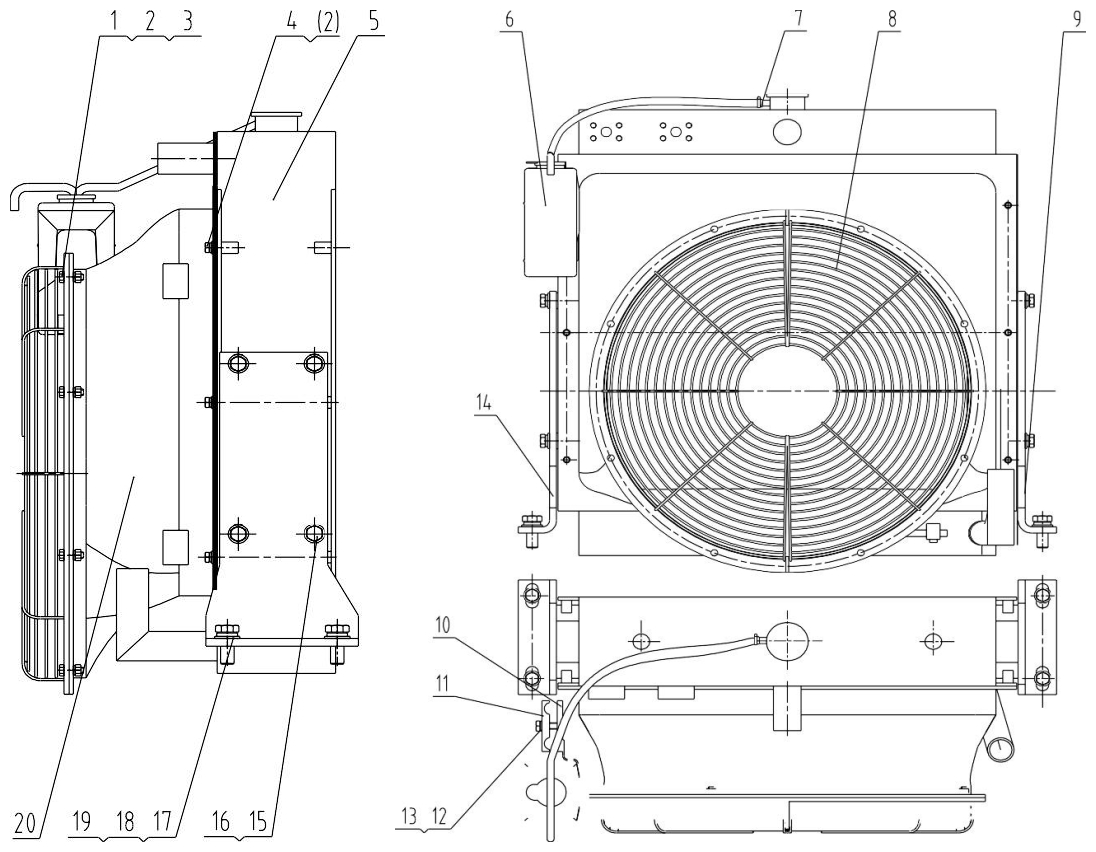

| 20C0945 000 散热系统 COOLING SYSTEM | |||||
|---|---|---|---|---|---|
| 件号 ITEM |
部件号 PART NO. | 版本 VER |
零件名称 | PART NAME | 数量 Q'TY |
| 1 | 00B0085 | 000 | 螺栓 | BOLT | 8 |
| 2 | 06B0348 | 000 | 垫圈 | WASHER | 14 |
| 3 | 03B0021 | 000 | 螺母 | NUT | 8 |
| 4 | 00B0102 | 000 | 螺栓 | BOLT | 6 |
| 5 | 20C0946 | 000 | 散热器 | RADIATOR | 1 |
| 6 | 40C1310 | 001 | 水壶 | WASHER RESERVOIR | 1 |
| 7 | 15B0067 | 000 | 双钢丝式环箍 | CLAMP | 1 |
| 8 | 45D0579 | 000 | 防护罩 | PROTECTION SHIELD | 2 |
| 9 | 29A0466 | 000 | 左支座 | BRACKET-LH | 1 |
| 10 | 00D6769 | 000 | 支架 | BRACKET | 1 |
| 11 | 15A4972 | 000 | 管夹 | CLAMP | 1 |
| 12 | 06B0002 | 000 | 垫圈 | WASHER | 1 |
| 13 | 00B0002 | 000 | 螺栓 | BOLT | 1 |
| 14 | 29A0467 | 000 | 右支座 | BRACKET-RH | 1 |
| 15 | 00B0035 | 000 | 螺栓 | BOLT | 8 |
| 16 | 06B0349 | 000 | 垫圈 | WASHER | 8 |
| 17 | 00B0094 | 000 | 螺栓 | BOLT | 4 |
| 18 | 06B0351 | 000 | 垫圈 | WASHER | 4 |
| 19 | 06B0012 | 000 | 垫圈 | WASHER | 4 |
| 20 | 45D0858 | 000 | 导风罩 | SHROUD | 1 |
