22D0556 002, BUCKET, LIUGONG PARTS CATALOGUES

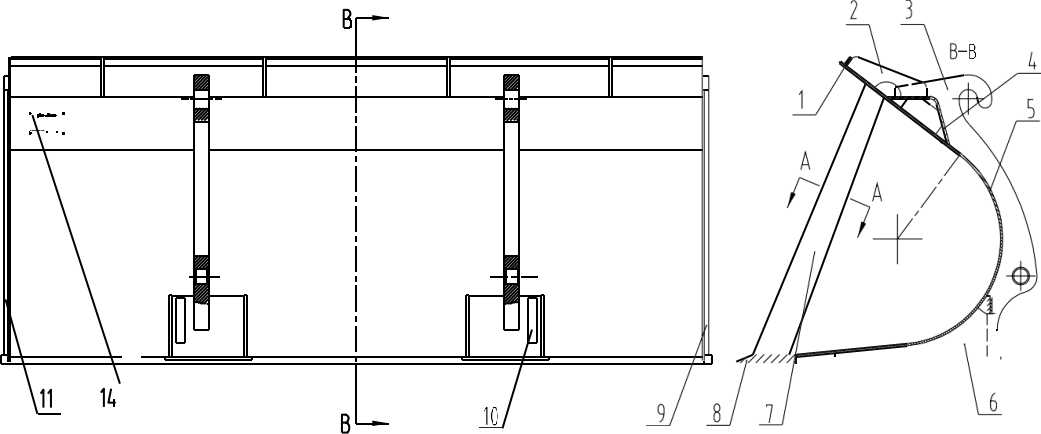

| 22D0556 002 铲斗 BUCKET | ||||||||
|---|---|---|---|---|---|---|---|---|
| 件号 ITEM |
部件号 PART NO. | 版本 VER |
零件名称 | PART NAME | 数量 Q'TY |
|||
| 1 | 13A2921 | 000 | 筋板 | PLATE | 1 | |||
| 2 | 12A1877 | 000 | 肋板 | PLATE | 4 | |||
| 3 | 18A1648 | 001 | 连动杆 | LINKAGE | 2 | |||
| 4 | 00D3195 | 000 | 支架 | BRACKET | 1 | |||
| 5 | 22A2284 | 000 | 弯板 | PLATE | 1 | |||
| 6 | 02D2381 | 000 | 支座 | BRACKET | 2 | |||
| 7 | 16A4041 | 000 | 右切削板 | EDGE-RH | 1 | |||
| 8 | 16A4044 | 000 | 主切削板 | CUTTING EDGE | 1 | |||
| 9 | 12A2164 | 000 | 侧斗板 | SIDE HOPPER PLATE | 2 | |||
| 10 | 34C1115 | 000 | 限位块组件 | BLOCK GP | 2 | |||
| 11 | 16A4042 | 000 | 左切削板 | EDGE-LH | 1 | |||
| 12 | 10A4677 | 000 | 铭牌 | NAMEPLATE | 1 | |||
| 13 | 10A4678 | 000 | 铭牌 | NAMEPLATE | 1 | |||
| 14 | 01B0012 | 000 | 铆钉 | RIVET | 4 | |||
