30E0385 003, HINGE SYSTEM, LIUGONG PARTS CATALOGUES

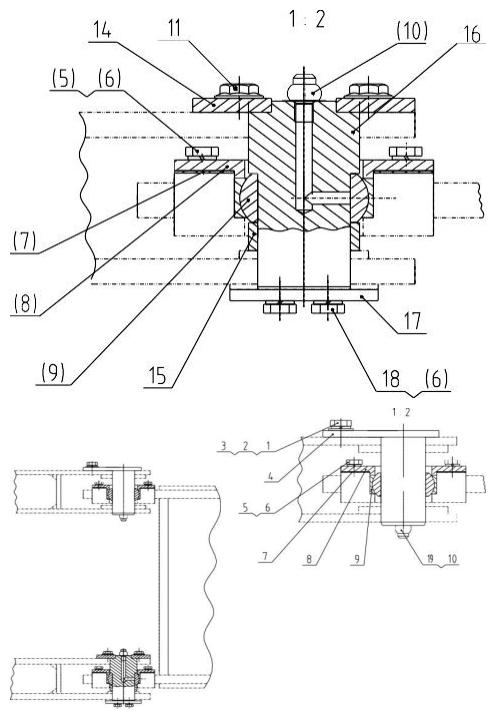

| 30E0385 003 铰接系统 HINGE SYSTEM | |||||
|---|---|---|---|---|---|
| 件号 ITEM |
部件号 PART NO. | 版本 VER |
零件名称 | PART NAME | 数量 Q'TY |
| 1 | 00B0038 | 000 | 螺栓 | BOLT | 1 |
| 2 | 06B0350 | 000 | 垫圈 | WASHER | 1 |
| 3 | 06B0009 | 000 | 垫圈 | WASHER | 1 |
| 4 | 11D0624 | 000 | 销 | PIN | 1 |
| 5 | 00B0012 | 000 | 螺栓 | BOLT | 8 |
| 6 | 06B0347 | 000 | 垫圈 | WASHER | 11 |
| 7 | 28K0006 | 000 | 调整垫片 | SHIM | 2 |
| 8 | 53H0010 | 001 | 轴承盖 | BEARING COVER | 2 |
| 9 | 25B0011 | 000 | 关节轴承 GE50ES | KNUCKLE BEARING | 2 |
| 10 | 10B0014 | 000 | 油杯 | GREASE FITTING | 2 |
| 11 | 01B0297 | 000 | 螺栓 | BOLT | 4 |
| 14 | 09A0247 | 000 | 压板 | PLATE | 1 |
| 15 | 56H0003 | 000 | 垫套 | BUSHING | 1 |
| 16 | 60A1311 | 000 | 销 | PIN | 1 |
| 17 | 13A2883 | 000 | 盖板 | COVER PLATE | 1 |
| 18 | 00B0164 | 000 | 螺栓 | BOLT | 3 |
| 19 | 86A0258 | 001 | 油杯护套 | BOOT | 2 |
