30E0389 003 , REAR FRAME, LIUGONG PARTS CATALOGUES

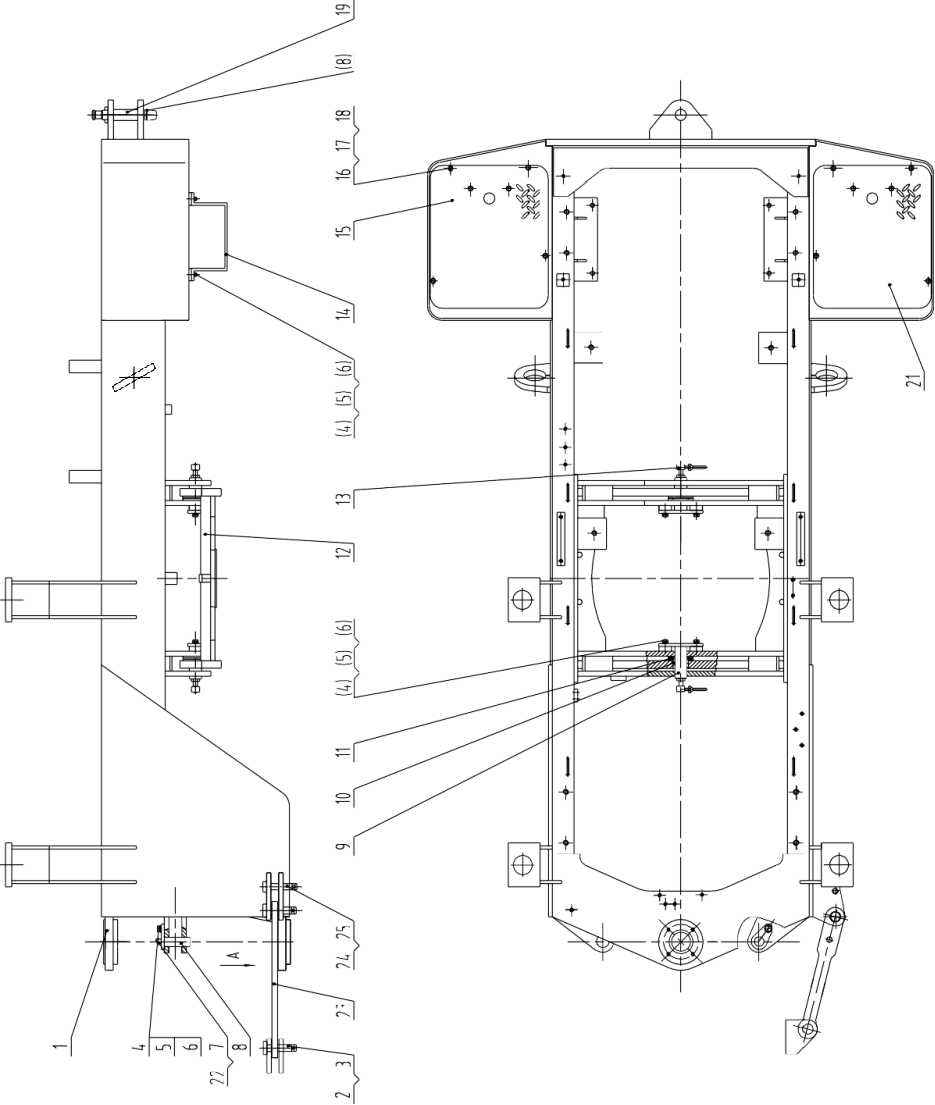

| 30E0389 003 后车架 REAR FRAME | |||||
|---|---|---|---|---|---|
| 件号 ITEM |
部件号 PART NO. | 版本 VER |
零件名称 | PART NAME | 数量 Q'TY |
| 1 | 30D0437 | 004 | 后车架 | REAR FRAME | 1 |
| 2 | 60A0160 | 000 | 销 | PIN | 2 |
| 3 | 08B0017 | 000 | 销 | PIN | 3 |
| 4 | 00B0011 | 000 | 螺栓 | BOLT | 10 |
| 5 | 06B0349 | 000 | 垫圈 | WASHER | 10 |
| 6 | 06B0007 | 000 | 垫圈 | WASHER | 10 |
| 7 | 10B0051 | 000 | 油杯 | GREASE FITTING | 2 |
| 8 | 11L0013 | 002 | 后转向销 | STEERING PIN | 2 |
| 9 | 11L0012 | 004 | 付车架销 | PIN | 2 |
| 10 | 55H0001 | 000 | 轴套 | BUSHING | 2 |
| 11 | 28C0119 | 000 | 调整垫片 | ADJUSTING SHIM | 2 |
| 12 | 30D0273 | 002 | 付车架 | SUBSIDIARY FRAME | 1 |
| 13 | 00C0504 | 003 | 后车架黄油管路 | REAR FRAME GREASE LINES |
1 |
| 14 | 23H0039 | 002 | 脚蹬支承 | STEP SUPPORT | 2 |
| 15 | 10A3563 | 000 | 盖板 | COVER PLATE | 1 |
| 16 | 00B0075 | 000 | 螺栓 | BOLT | 8 |
| 17 | 06B0348 | 000 | 垫圈 | WASHER | 8 |
| 18 | 06B0005 | 000 | 垫圈 | WASHER | 8 |
| 19 | 11L0020 | 000 | 牵引销 | TRACTION PIN | 1 |
| 20 | 17H0019 | 000 | 限位块 | BLOCK | 2 |
| 21 | 10A3564 | 000 | 盖板 | COVER PLATE | 1 |
| 22 | 86A0258 | 001 | 油杯护套 | BOOT | 2 |
| 23 | 16A4694 | 000 | 板 | PLATE | 1 |
| 24 | 60A0178 | 000 | 插销 | PIN | 1 |
| 25 | 08B0005 | 000 | 销 | PIN | 1 |
