30E0468 001, FRONT FRAME AS, LIUGONG PARTS CATALOGUES

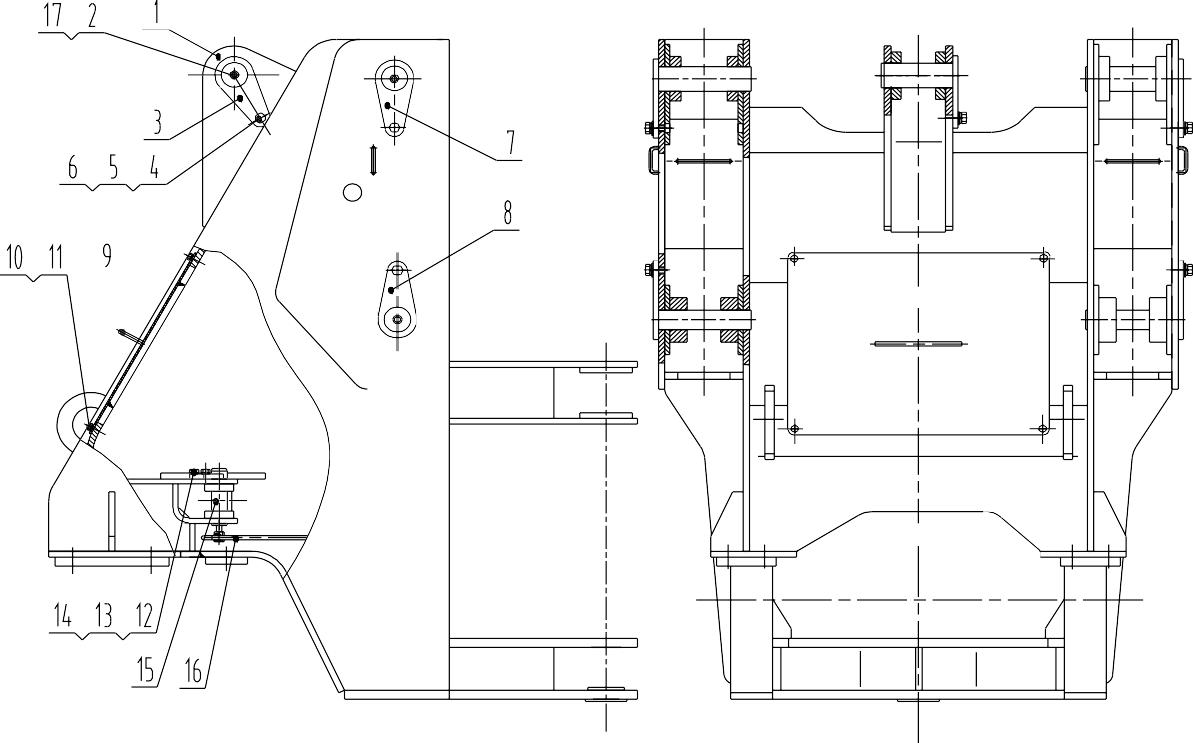

| 30E0468 001 前车架总成 FRONT FRAME AS | |||||||
|---|---|---|---|---|---|---|---|
| 件号 ITEM |
部件号 PART NO. | 版本 VER |
零件名称 | PART NAME | 数量 Q'TY |
||
| 1 | 30D0564 | 004 | 前车架 | FRONT FRAME | 1 | ||
| 2 | 10B0014 | 000 | 油杯 | GREASE FITTING | 5 | ||
| 3 | 11L0019 | 002 | 转斗缸销 | PIN | 1 | ||
| 4 | 00B0038 | 000 | 螺栓 | BOLT | 5 | ||
| 5 | 06B0350 | 000 | 垫圈 | WASHER | 5 | ||
| 6 | 06B0009 | 000 | 垫圈 | WASHER | 5 | ||
| 7 | 11L0017 | 002 | 动臂销 | PIN | 2 | ||
| 8 | 11L0018 | 002 | 动臂缸销 | PIN | 2 | ||
| 9 | 43D0505 | 000 | 板 | PLATE | 1 | ||
| 10 | 00B0075 | 000 | 螺栓 | BOLT | 4 | ||
| 11 | 06B0348 | 000 | 垫圈 | WASHER | 4 | ||
| 12 | 06B0347 | 000 | 垫圈 | WASHER | 4 | ||
| 13 | 00B0005 | 000 | 螺栓 | BOLT | 4 | ||
| 14 | 14A5553 | 000 | 板 | PLATE | 2 | ||
| 15 | 60A1313 | 000 | 销 | PIN | 2 | ||
| 16 | 00C2025 | 001 | 油脂管路 | GREASE LINES | 1 | ||
| 17 | 86A0258 | 001 | 油杯护套 | BOOT | 5 | ||
